Attachment-point MEGA Lifting point MLP

The MEGA Lifting Point MLP is the powerful solution for lifting extremely heavy loads. Designed for maximum load capacity and safety, this heavy-duty lifting point impresses with its compact design, ergonomic shape, and highly efficient load distribution.
Thanks to its robust construction, the MLP offers high resistance to friction and can be used at a load angle of 90° with full Working Load Limit (WLL). Crack-tested bolts are included in the delivery and ensure quick and secure installation.

Additional information

Material: Tempered steel, crack-tested
Suspension: High-strength GN bow shackle
Surface: Main body painted RAL 5021
Temperature range: –40 °C to +300 °C
Safety factor: 4:1
Certification: CE, UKCA
Extras: Available with optional RFID chip

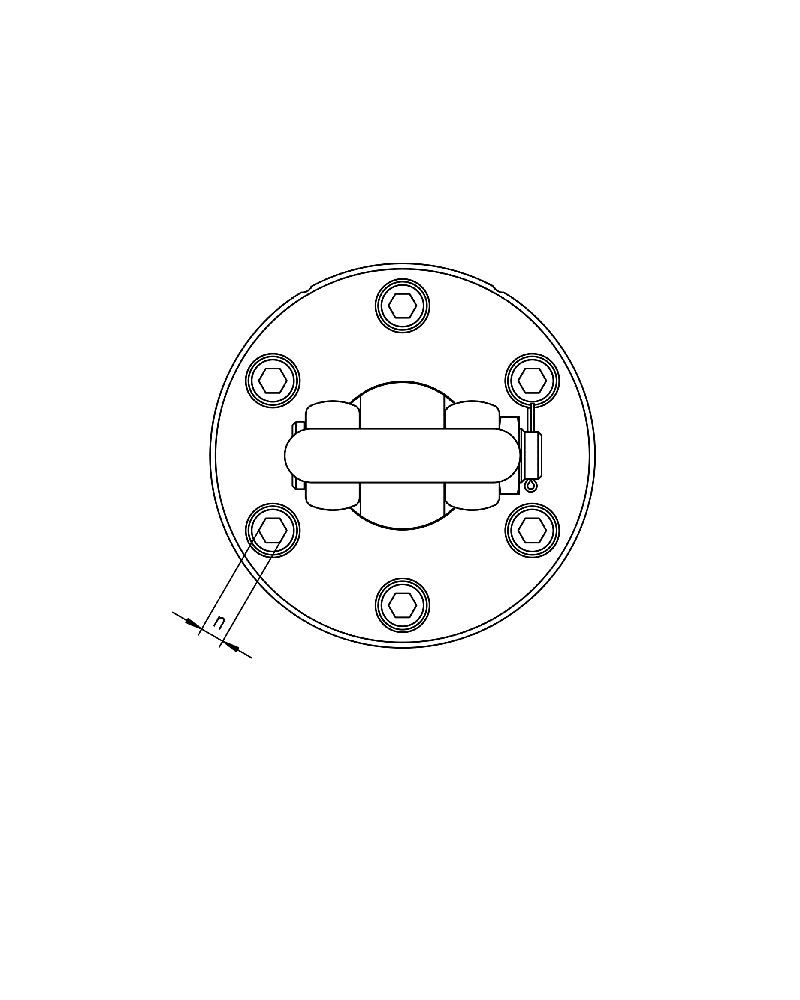

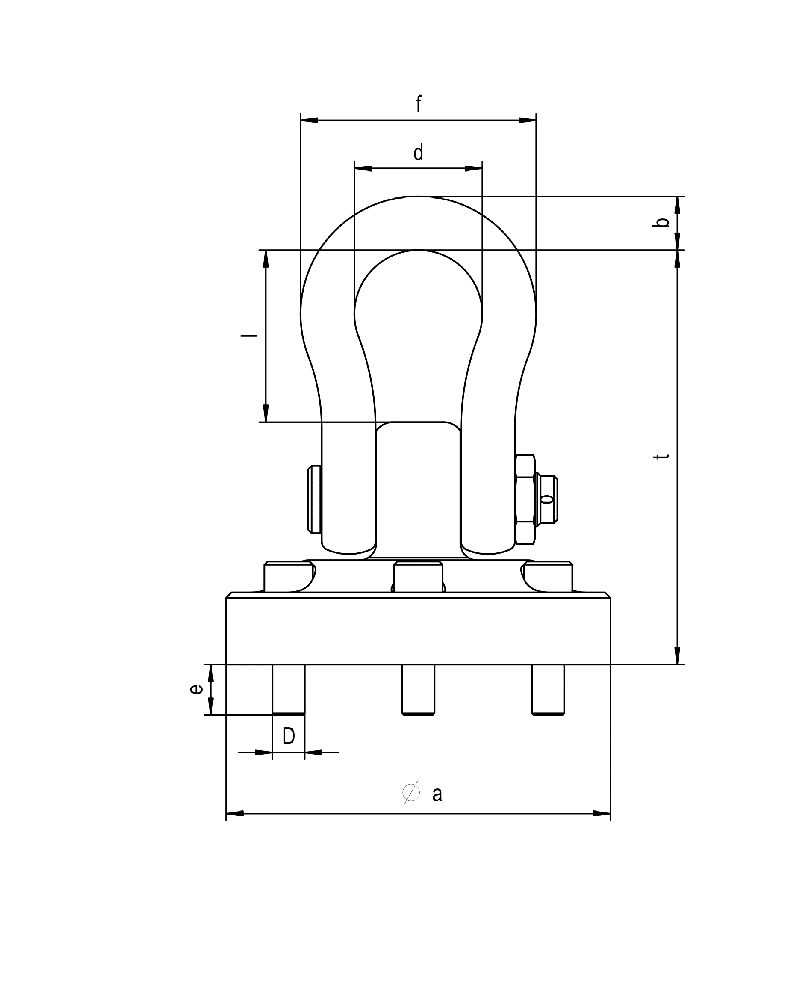

Measurements and weight

Code		Pitch								Weight	Ident no.
		DIN 13	a mm	b mm	d mm	f mm	t mm	l mm
MLP 85	6x M 48 x 75	5	400	70	180	320	505	209	141	42	0381385000	Jetzt anfragen
MLP 100	6x M 48 x 75	5	400	80	190	350	592	271	145	70	0381310000	Jetzt anfragen
MLP 120	6x M 48 x 75	5	571	80	190	350	615	255	292	70	0381312000	Jetzt anfragen
MLP 200	10x M 48 x 75	5	650	110	275	484	833	393	439	183	0381320000	Jetzt anfragen
MLP 250	12x M 48 x 75	5	730	120	300	540	965	450	656	255	0381325000	Jetzt anfragen

Additional Information

WLL

Kind of attachment
Number of pieces	1	1	2	2	2		3 o. 4
Inclination angle	0°	90°	0°	90°	0°-45°	45°-60°	0°-45°	45°-60°
Code	t	t	t	t	t	t	t	t
MLP 85	85	85	170	170	119	85	178	127
MLP 100	100	100	200	200	140	100	210	150
MLP 120	120	120	240	240	168	120	252	180
MLP 200	200	200	400	400	280	200	420	300
MLP 250	250	250	500	500	350	250	525	375
