THEIPA Point-F with internal thread

Attachment swivel TP-F with internal thread and ball bearing. Crimpfeature on the link prevents the link from kinking.
The galvanized coating provides an optimal corrosion protection.

Additional information

Bolts of the quality class 10.9 crack-tested are permitted as connecting elements.
Othe threads and lenghts are available on request (TPSO).
With RFID -chip available.

WLL

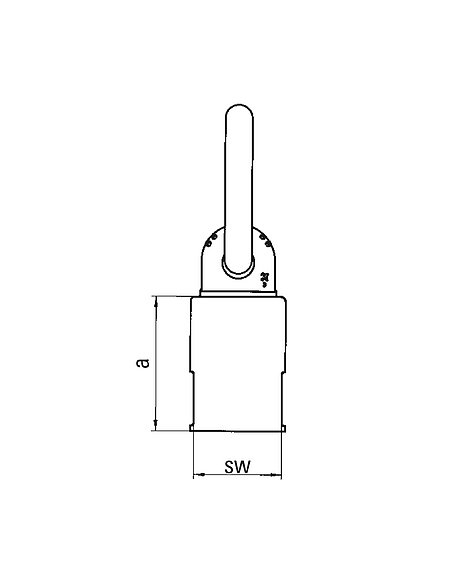

Measurements and Weight

Code	Thread version	Tightening torque	Pitch						Link	Weight	Ident no.
	d x e [mm]	[Nm]	DIN 13	a [mm]	Øb [mm]	g [mm]	SW [mm]	t [mm]	Øxt₁ x b₁ [mm]	[kg]
TP-F 0,5	M 12 x 15	40	1,75	45	36,5	73	34	66	13x55x32	0,6	0381800000	Request here
TP-F 1	M 16 x 20	130	2,0	52	36,5	80	34	73	13x55x32	0,7	0381801000	Request here
TP-F 1,7	M 20 x 25	170	2,5	66	52	106	46	95	16x70x34	1,5	0381802000	Request here
TP-F 2,1	M 24 x 30	280	3,0	80	57	120	50	108	18x85x45	2,1	0381804000	Request here
TP-F 3,2	M 30 x 40	400	3,5	94	70	148	65	131	20x85x46	3,7	0381806000	Request here
TP-F 5	M 36 x 45	600	4,0	107	80	164	75	145	23x115x60	5,8	0381808000	Request here

More information

The new generation of attachment swivels

The advantages:
- All of the THEIPA Point's advantages have also been considered in this case.
- The thread's depth is 1,25 times its diameter as a rule.
- The stamped WLL applies to the kind of attachment at 90°.
- Bolts of the quality class 10.9 crack tested are permitted as connecting elements.
- Secured four times against breakage in all load direction.

- Different threaded versions and lengths can be supplied on request.

WLL

Kind of attachment
Number of pieces		1	1	2	2	2	2	3 o. 4	3 o. 4
Inclination angle		0°	90°	0°	90°	0°-45°	45°-60°	0°-45°	45°-60°
Code	Thread version	t	t	t	t	t	t	t	t
TP-F 0,5	M 12 x 15	1,4	0,5	2,8	1,0	0,7	0,5	1,0	0,75
TP-F 1	M 16 x 20	2,8	1,0	5,6	2,0	1,4	1,0	2,12	1,5
TP-F 1,7	M 20 x 25	5,0	1,7	10,0	3,4	2,4	1,7	3,55	2,5
TP-F 2,1	M 24 x 30	8,0	2,1	16,0	4,0	2,8	2,1	4,25	3,15
TP-F 3,2	M 30 x 40	12,0	3,2	24,0	6,4	4,25	3,15	6,7	4,75
TP-F 5	M 36 x 45	15,0	5,0	30,0	10,0	6,7	5,0	10,0	7,5

In case of an unsymmetrical load distribution, the working load limit applicable to the 2- and 3/4 leg sling (attachment points) are the same as for 1 leg sling at 90°.
