NORM8 Chain sling

Factor and working load

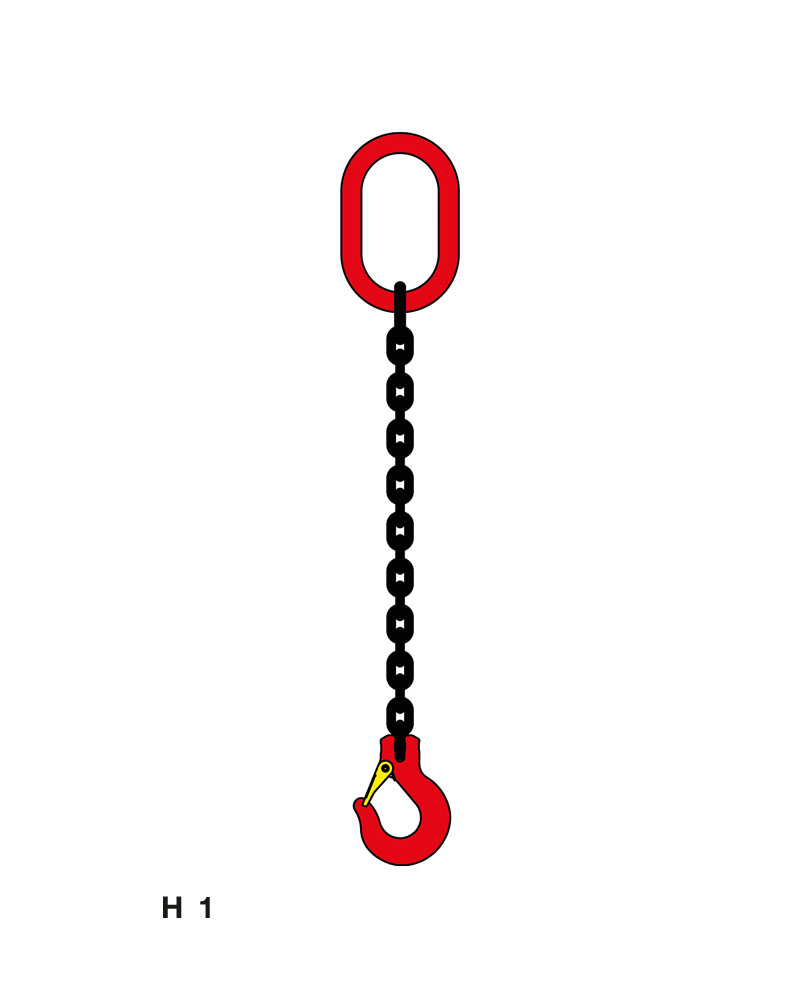

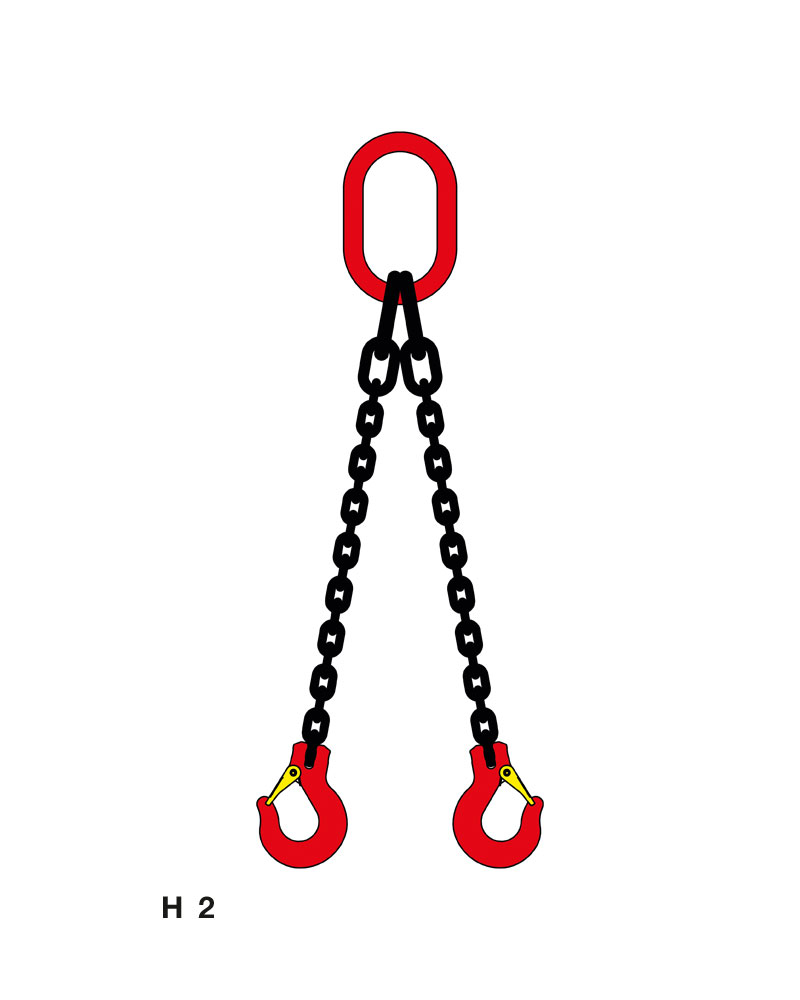

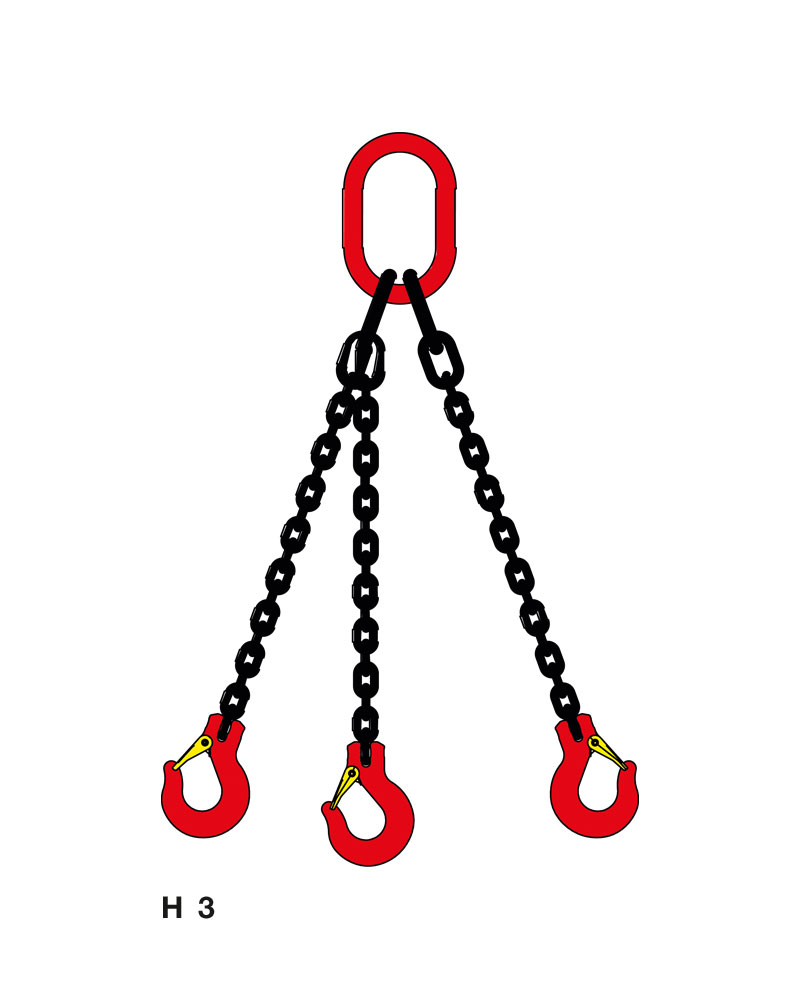

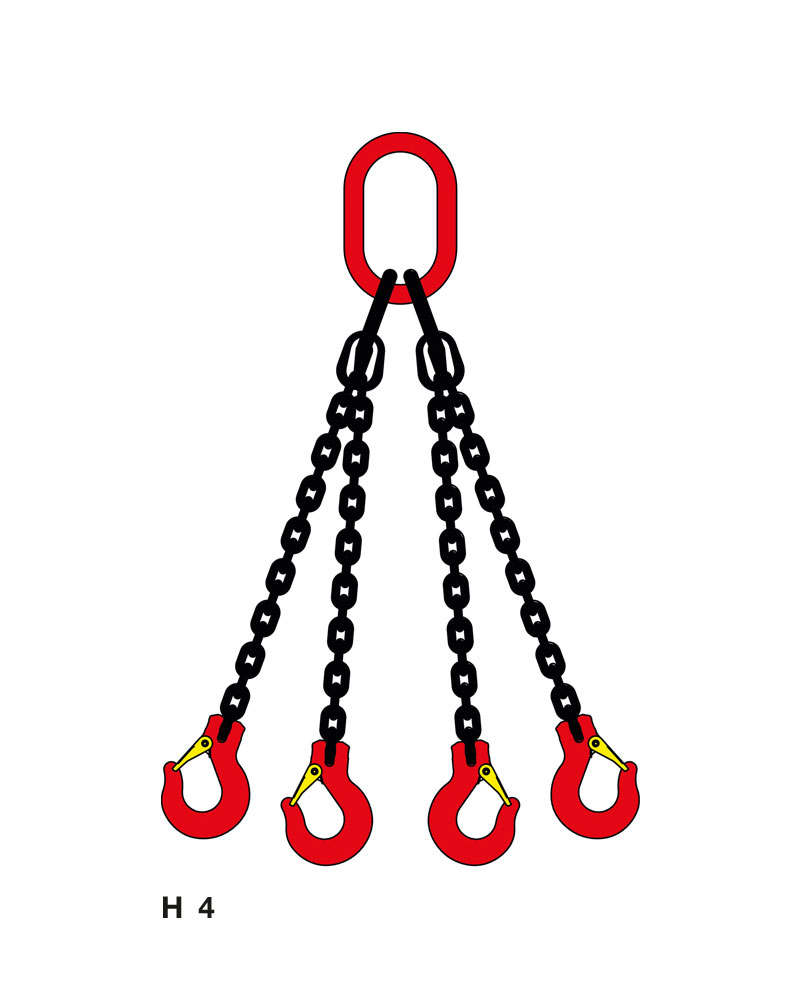

	1-leg	2-leg	2-leg	3+4-leg	3+4-leg
	WLL	WLL	WLL	WLL	WLL
Inclination angle [mm]	90° [t]	0° - 45° [t]	45° - 60° [t]	0° - 45° [t]	45° - 60° [t]
6 x 18	1,12	1,6	1,12	2,36	1,7
7 x 21	1,5	2,12	1,5	3,15	2,24
8 x 24	2,0	2,8	2,0	4,25	3,0
10 x 30	3,15	4,25	3,15	6,7	4,75
13 x 39	5,3	7,5	5,3	11,2	8,0
16 x 48	8,0	11,2	8,0	17,0	11,8
18 x 54	10,0	14,0	10,0	21,2	15,0
20 x 60	12,5	17,0	12,5	26,5	19,0
22 x 66	15,0	21,2	15,0	31,5	22,4
26 x 78	21,2	30,0	21,2	45,0	31,5
28 x 84	25,0	33,5	25,0	50,0	37,5
32 x 96	31,5	45,0	31,5	67,0	47,5
36 x 108	40,0	56,0	40,0	85,0	60,0
40 x 120	50,0	71,0	50,0	106,0	75,0
45 x 135	63,0	90,0	63,0	132,0	95,0
50 x 150	80,0	112,0	80,0	168,0	120,0
factor	1	1,4	1	2,1	1,5
