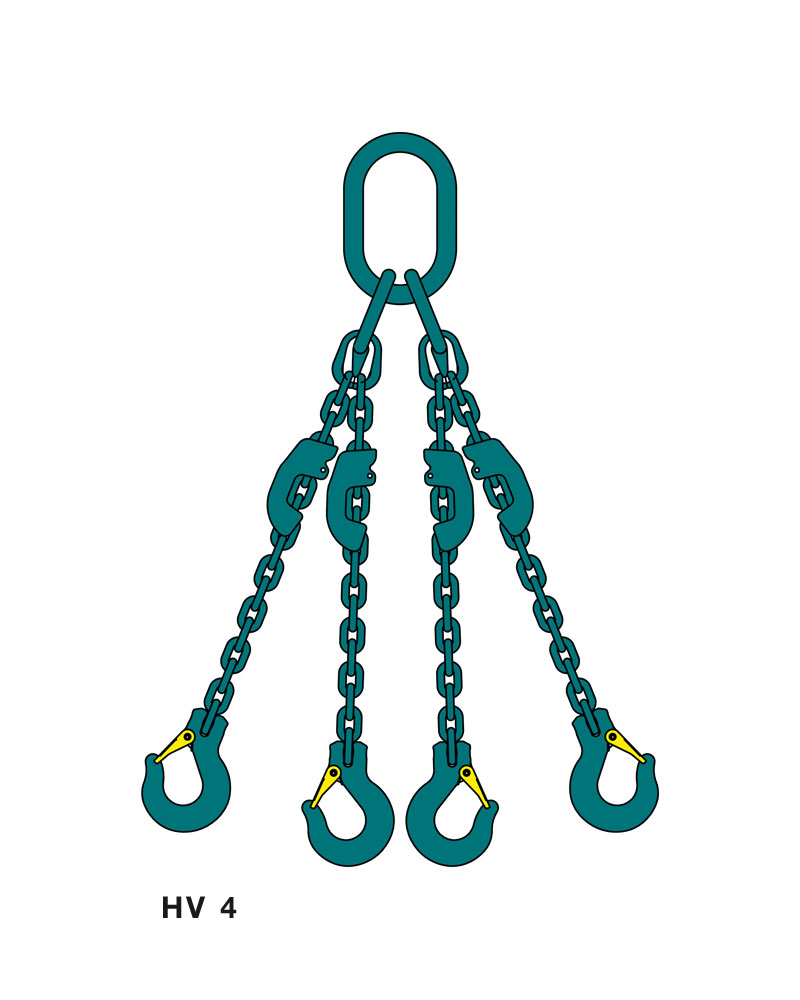

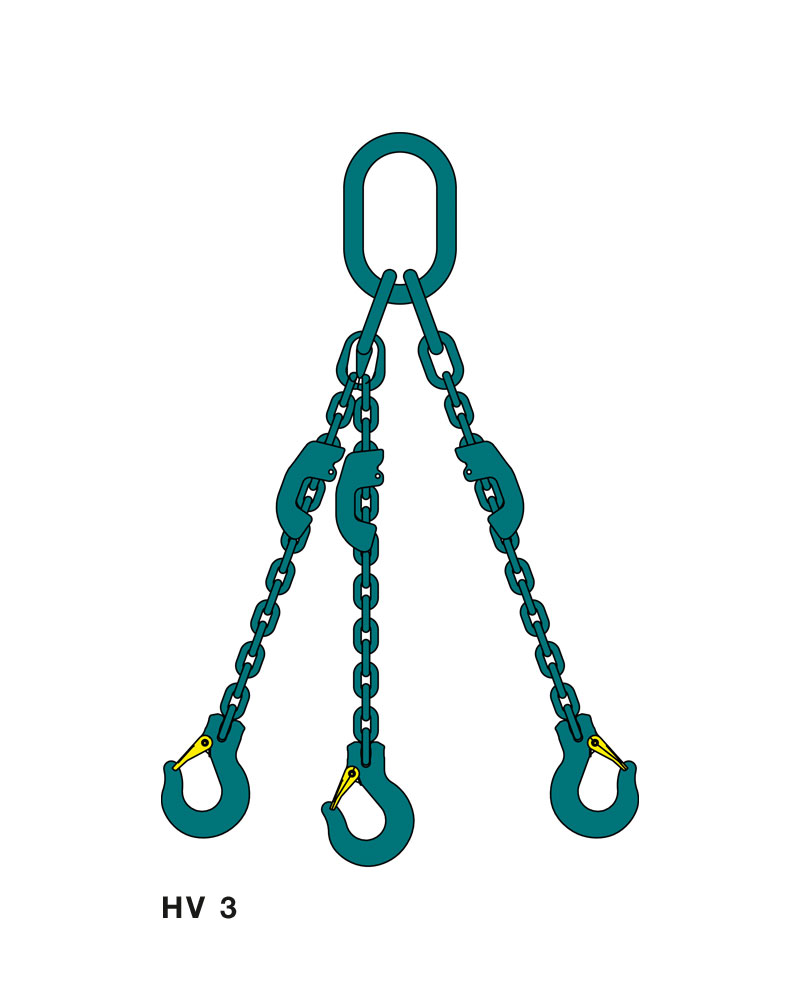

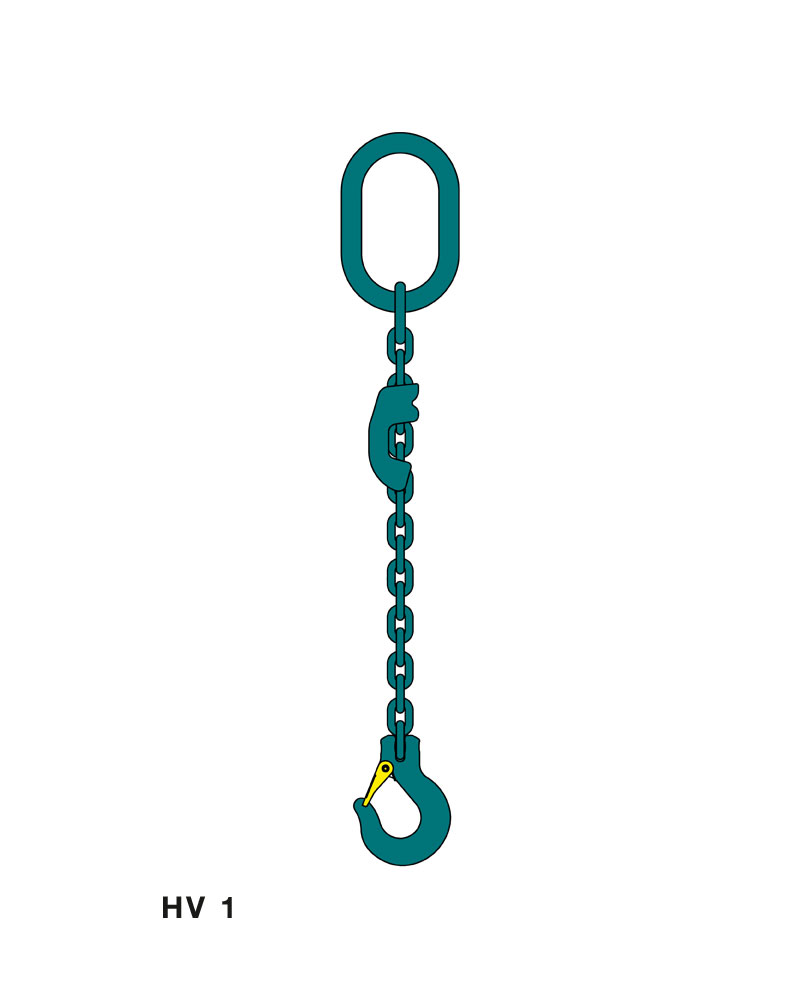

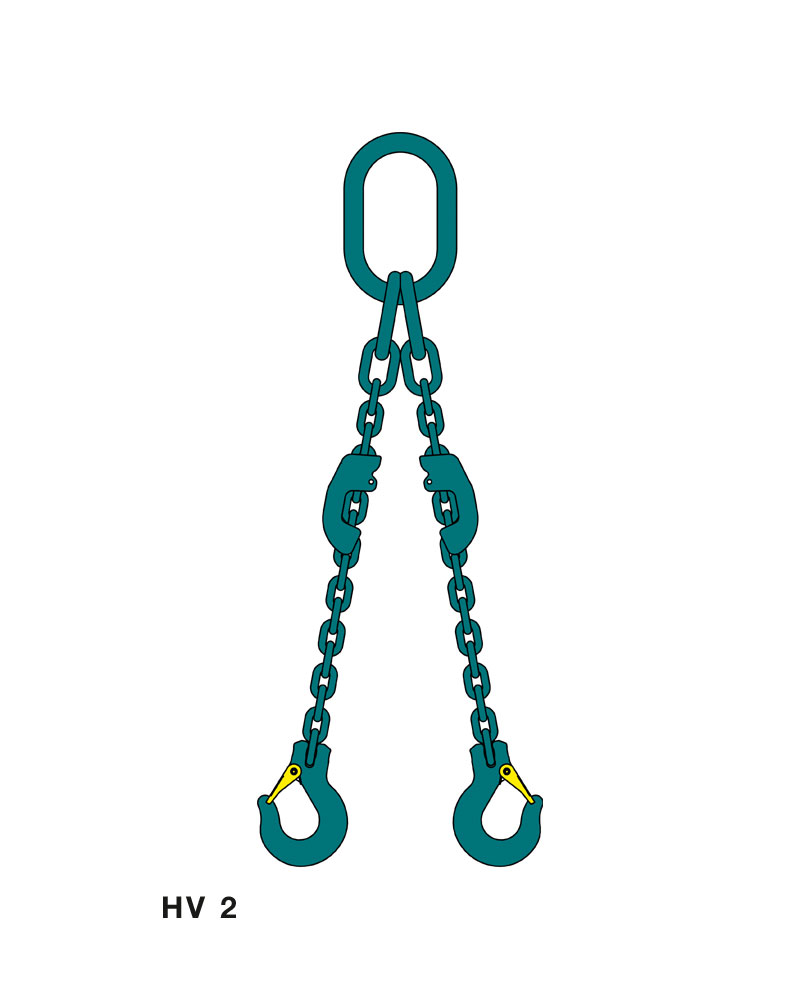

ENORM Chain sling with hook and shortener

Factor and working load

	1-leg	2-leg	2-leg	3+4-leg	3+4-leg
	WLL	WLL	WLL	WLL	WLL
Inclination angle [mm]	90° [t]	0° - 45° [t]	45° - 60° [t]	0° - 45° [t]	45° - 60° [t]
6 x 18	1,4	2	1,4	3	2,12
8 x 24	2,5	3,6	2,5	5,3	3,75
10 x 30	4	5,6	4	8	6
13 x 39	6,7	9,5	6,7	14	10
16 x 48	10	14	10	21,2	15
18 x 54	12,5	18	12,5	26,5	19
20 x 60	12,5	17	12,5	26,5	19
22 x 66	19	26,5	19	40	28
26 x 78	26,5	37	26,5	56	40
factor	1	1,4	1	2,1	1,5

Products in this application area must meet the highest standards. Contact us for your individual requirements.

Feel free to call us at the following phone number. We will be happy to advise you!
