ENORM Clevis shackle EGKS
The surface is RAL 5021 water blue powder coated
Other custom designs are available upon request.
With RFID -chip available

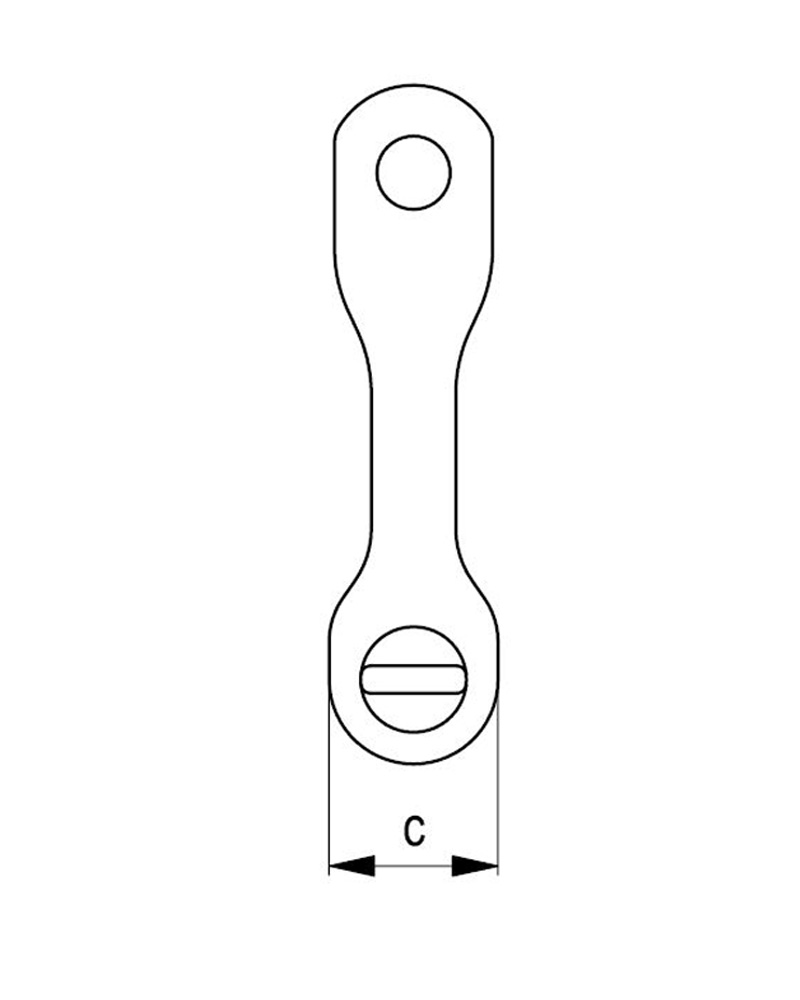

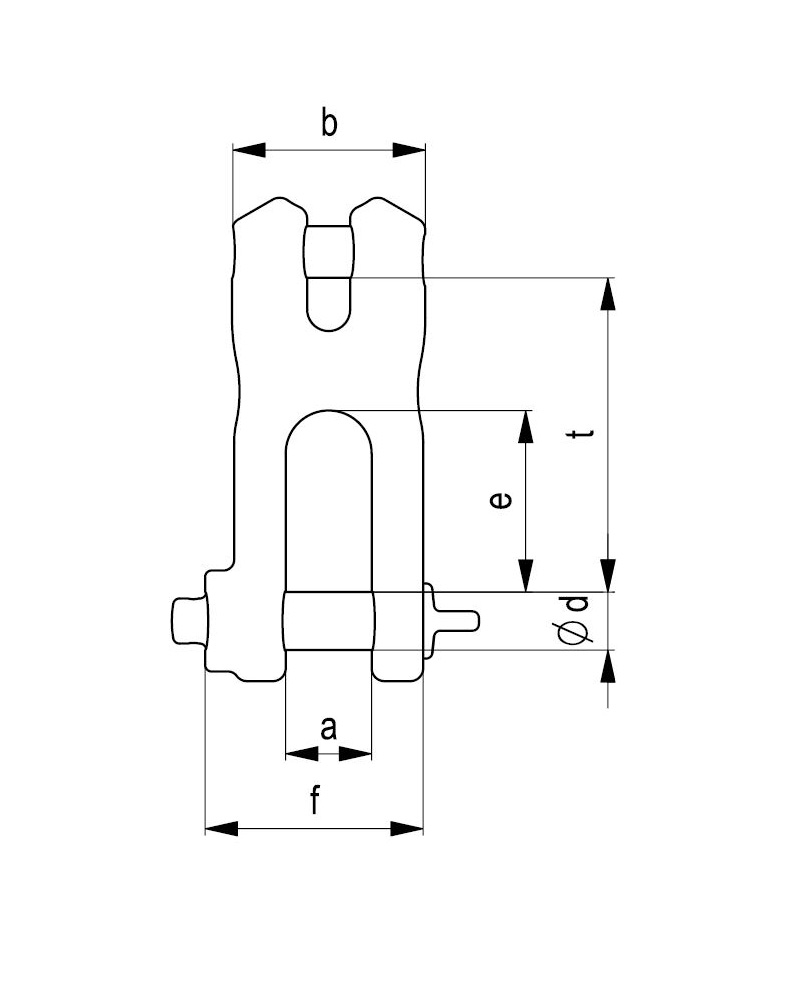

measurements and weight
Code | WLL | Weight | Ident no. | Download 3D | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
a [mm] |
b [mm] |
c [mm] |
Ød [mm] |
e [mm] |
f [mm] |
t [mm] | [kg] | |||||
EGKS 6 | 1,4 | 14 | 33 | 20 | 10 | 30 | 37 | 51 | 0,2 | 0352706000 | Request here | |
EGKS 8 | 2,5 | 16 | 44 | 24 | 12 | 34 | 42 | 63 | 0,40 | 0352708000 | Request here | |
EGKS 10 | 4,0 | 23 | 52 | 31 | 16 | 49 | 57 | 84 | 0,80 | 0352710000 | Request here | |
EGKS 13 | 6,7 | 27 | 65 | 38 | 20 | 61 | 71 | 102 | 1,64 | 0352713000 | Request here | |
EGKS 16 | 10,0 | 34 | 83 | 48 | 24 | 73 | 88 | 124 | 3,09 | 0352716000 | Request here | |
EGKS 18 | 12,5 | 40 | 90 | 56 | 27 | 85 | 102 | 146 | 4,32 | 0352718000 | Request here | |
EGKS 22 | 19,0 | 48 | 106 | 72 | 36 | 112 | 126 | 180 | 8,25 | 0352722000 | Request here |
