NORM8 Clevis connector TGV

NORM8 clevis connector for a directly connection between chain and other components.
Manufactured acc. to EN 1677-1.

The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

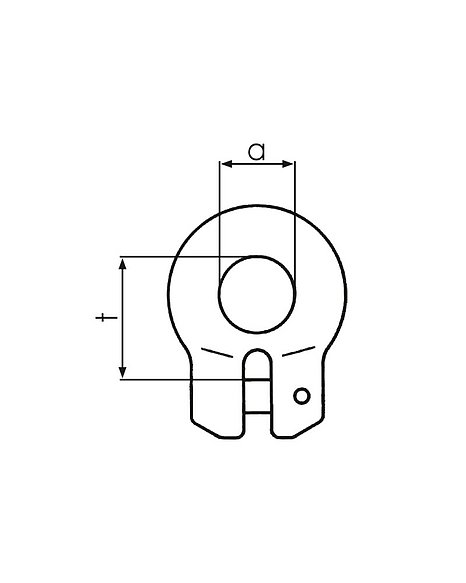

Measurement and weight

Bezeichnung	Tragfähigkeit					Gewicht	Artikel-Nr.
	[t]	a [mm]	b [mm]	c [mm]	t [mm]	[kg]
TGV 6	1,12	18	11	9	30	0,1	0351806100	Request here
TGV 8	2,0	24	15	12	41	0,2	0351808100	Request here
TGV 10	3,15	30	19	14	51	0,4	0351810100	Request here
TGV 13	5,3	37	23	18	63	0,8	0351813100	Request here
TGV 16	8,0	47	30	23	78	1,7	0351816100	Request here
TGV 18	10,0	53	33	26	89	2,5	0351818100	Request here
TGV 22	15,0	59	36	29	104	4,0	0351822100	Request here
