ENORM Spreader plate EAWI 1

ENORM Spreader plate EAWI 1 with master link for for use in a 4-leg chain sling (2x2 strands) to achieve an even load distribution on all 4 legs.

The surface is RAL 5021 water blue, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

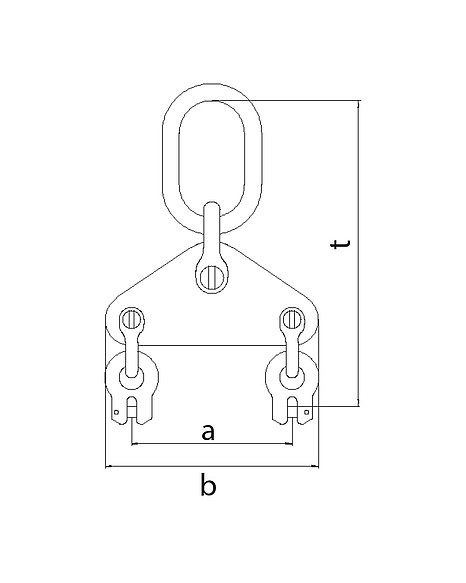

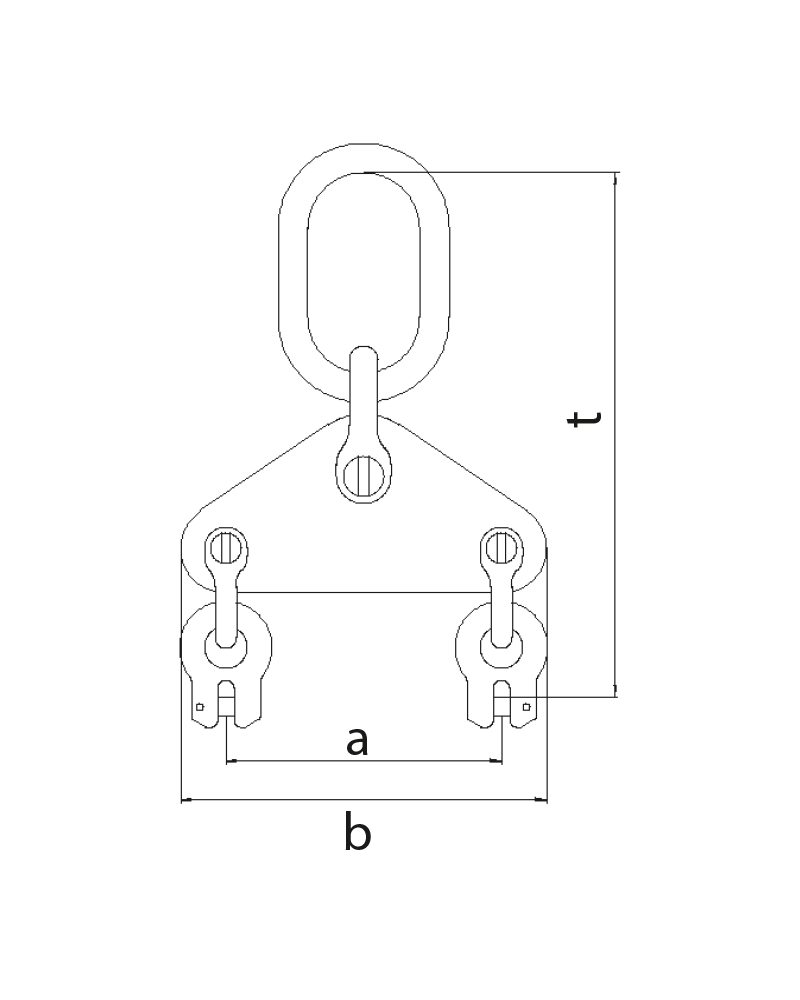

measurements and weight

Code	WLL						Link	Weight	Ident no.
	0°-45° [t]	45°-60° [t]	0°-45°* [t]	a [mm]	b [mm]	t [mm]	[mm]	[≈kg]
EAWI 1 10	5,6	4,0	11,2	185	255	399	22x160x90	7,7	0400110003	Request here
EAWI 1 13	9,5	6,7	19	245	325	470	26x180x100	13,9	0400113003	Request here
EAWI 1 16	14,0	10,0	28	300	390	556	32x200x110	24,2	0400116003	Request here
EAWI 1 18	18,0	12,5	36	320	420	661	38x260x140	35,8	0400118003	Request here

Please feel free to call us at the following telephone number. We will be happy to advise you!
