ENORM Spreader plate EAWI 2

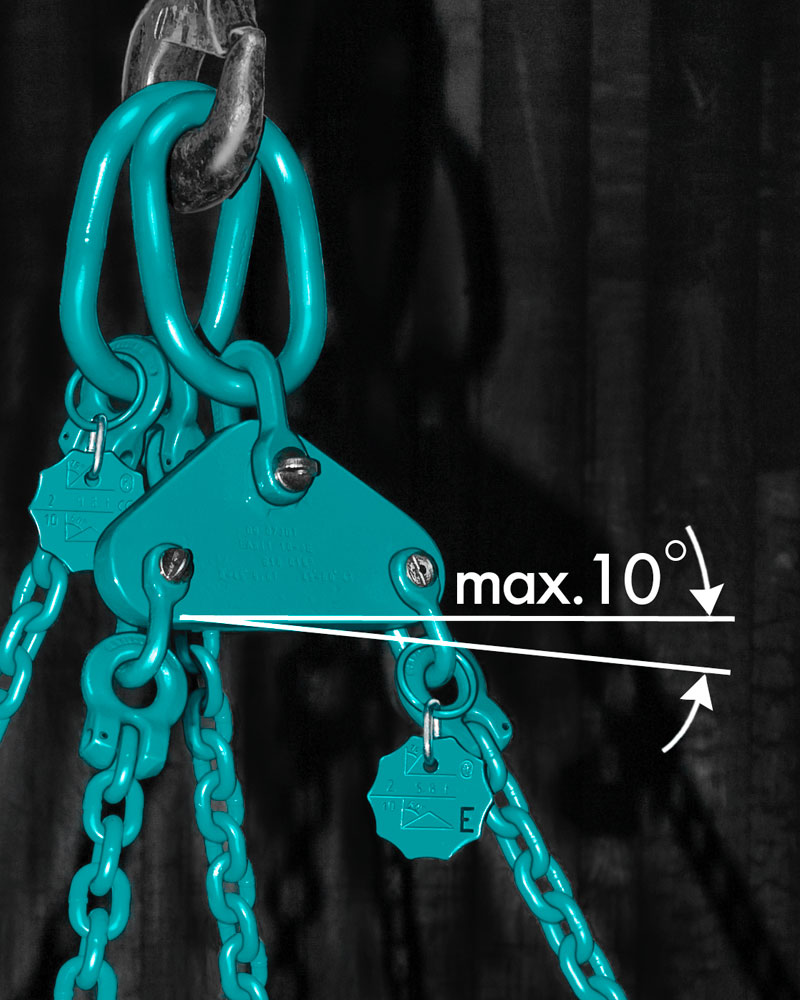

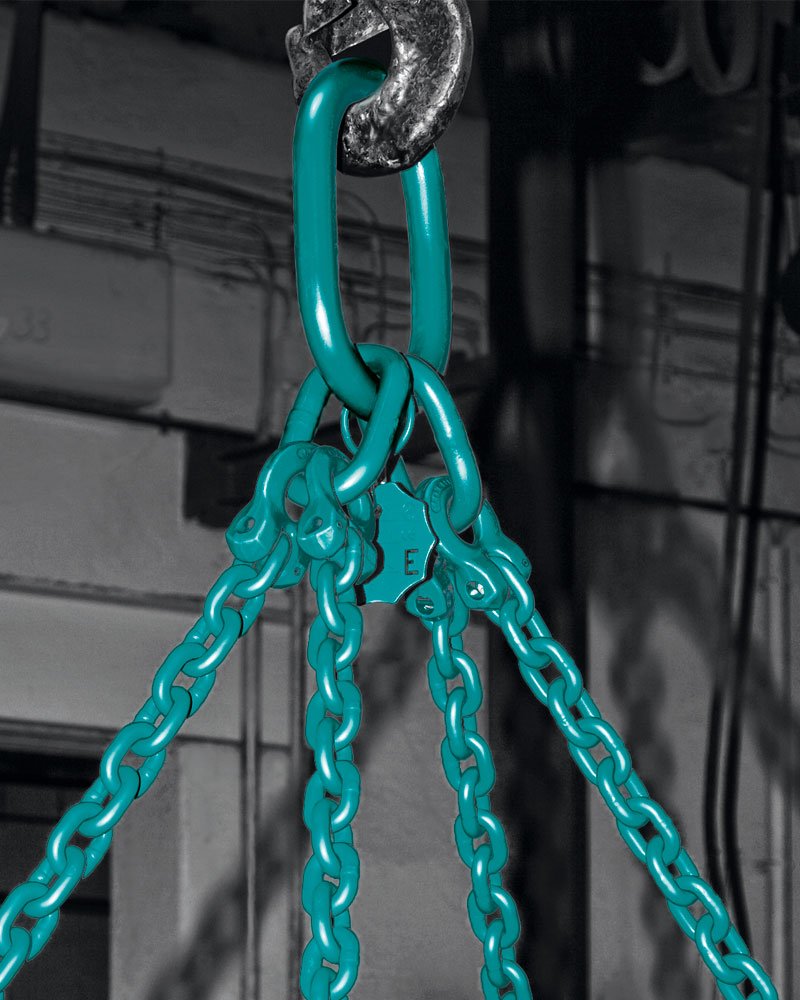

ENORM Spreader plate EAWI 2 with clevis heads for use in a 4-leg chain sling (2x2 strands) to achieve an even load distribution on all 4 legs.

The surface is RAL 5021 water blue, powder coated or painted.
Other custom designs are available upon request.
With RFID - chip available.

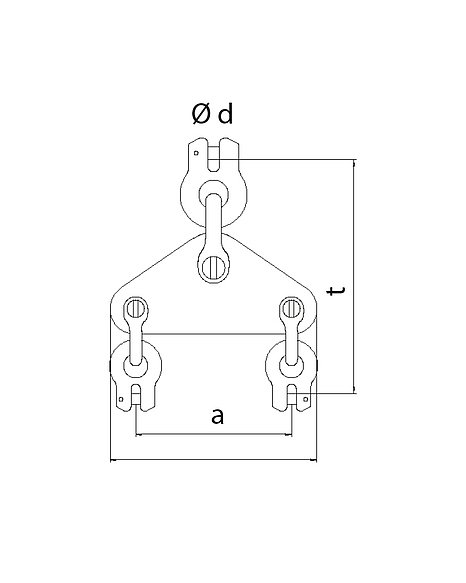

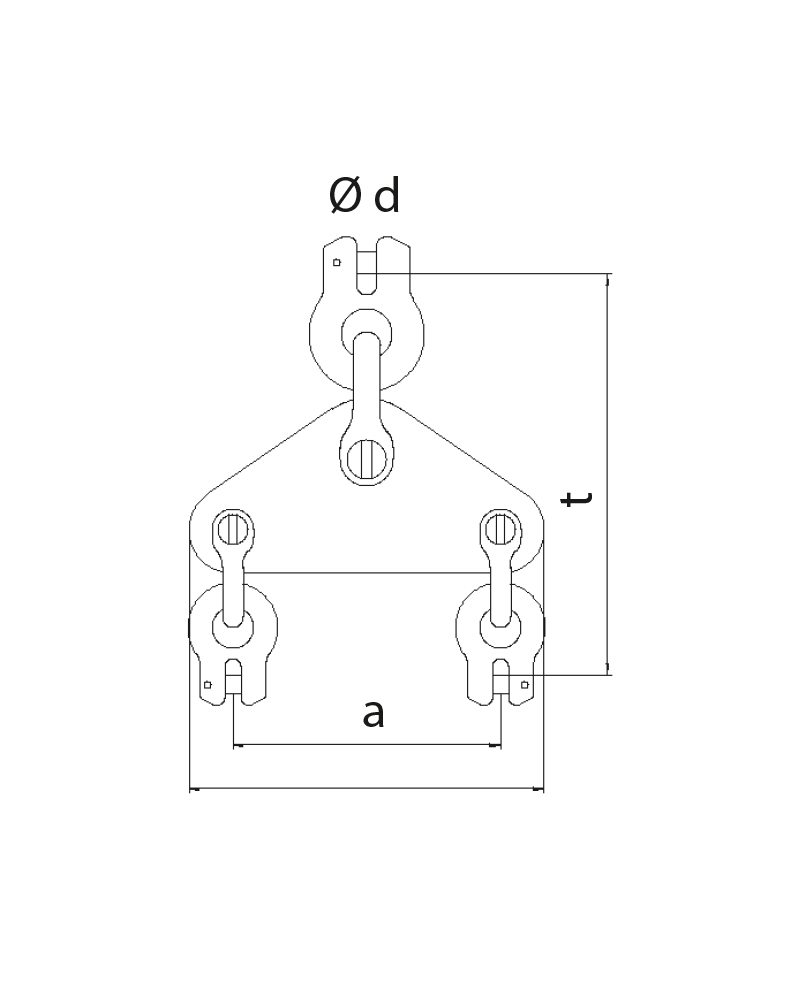

measurements and weight

Code	Chain	WLL					Link	Weight	Ident no.
	ød [mm]	0°-45° [t]	45°-60° [t]	0°-45°* [t]	a [mm]	b [mm]	t [mm]	[≈kg]
EAWI 2 10	16x48	5,6	4,0	11,2	185	255	326	8,5	0400110004	Request here
EAWI 2 13	18x54	9,5	6,7	19	245	325	393	15	0400113004	Request here
EAWI 2 16	22x66	14,0	10,0	28	300	390	630	28,2	0400116004	Request here

Please feel free to call us at the following telephone number. We will be happy to advise you!
