ENORM Swivel-hook for forklift EGSD -double-

ENORM Swivel-hook for forklift EGSD - double.

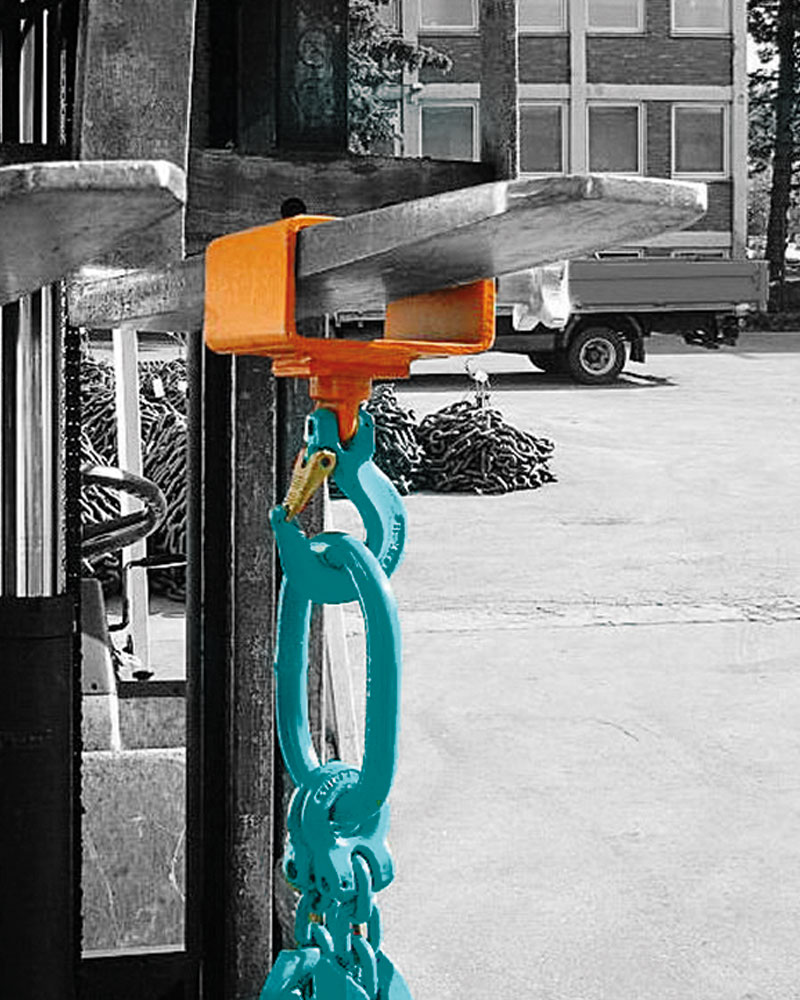

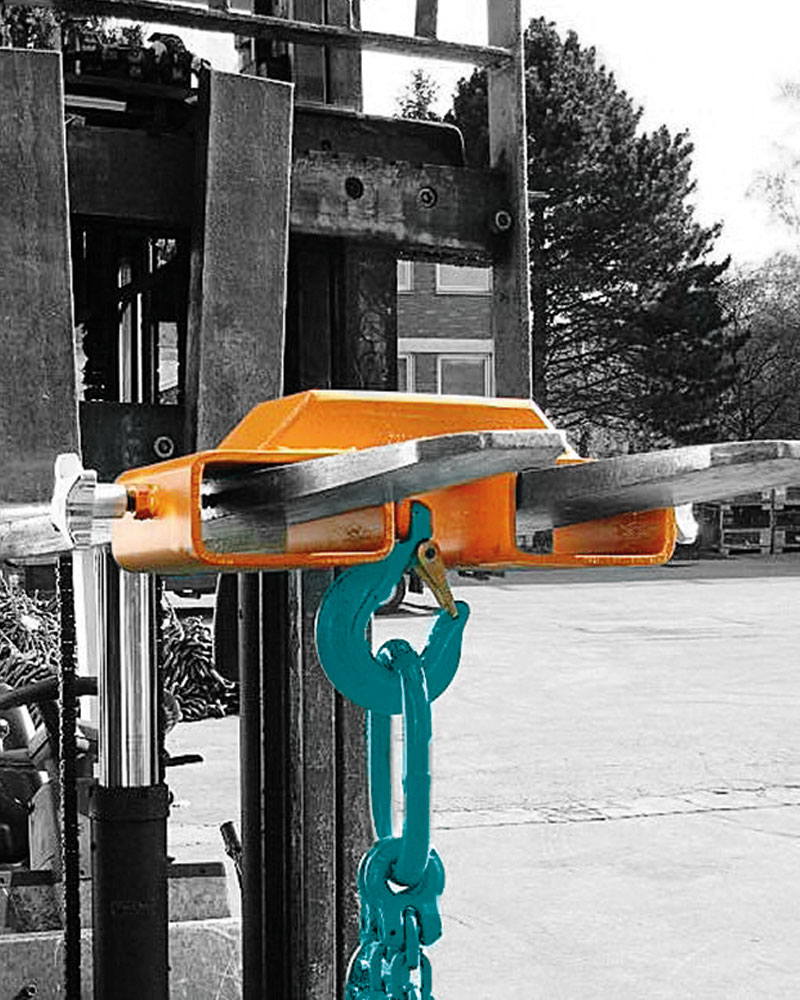

Simple securing of the forklift by means of cross-grip screw with ENORM clevis hook EGH.

The surface is RAL 5021 water blue, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available

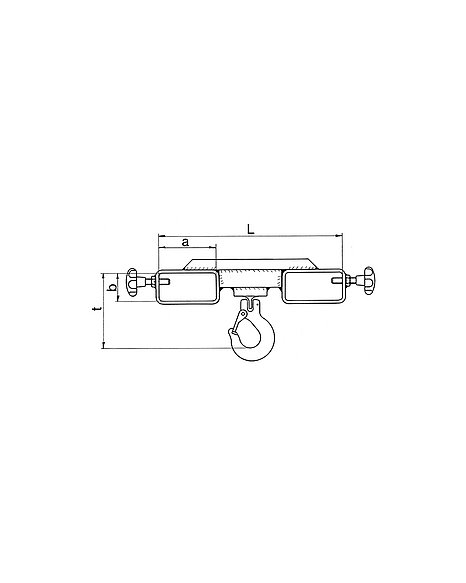

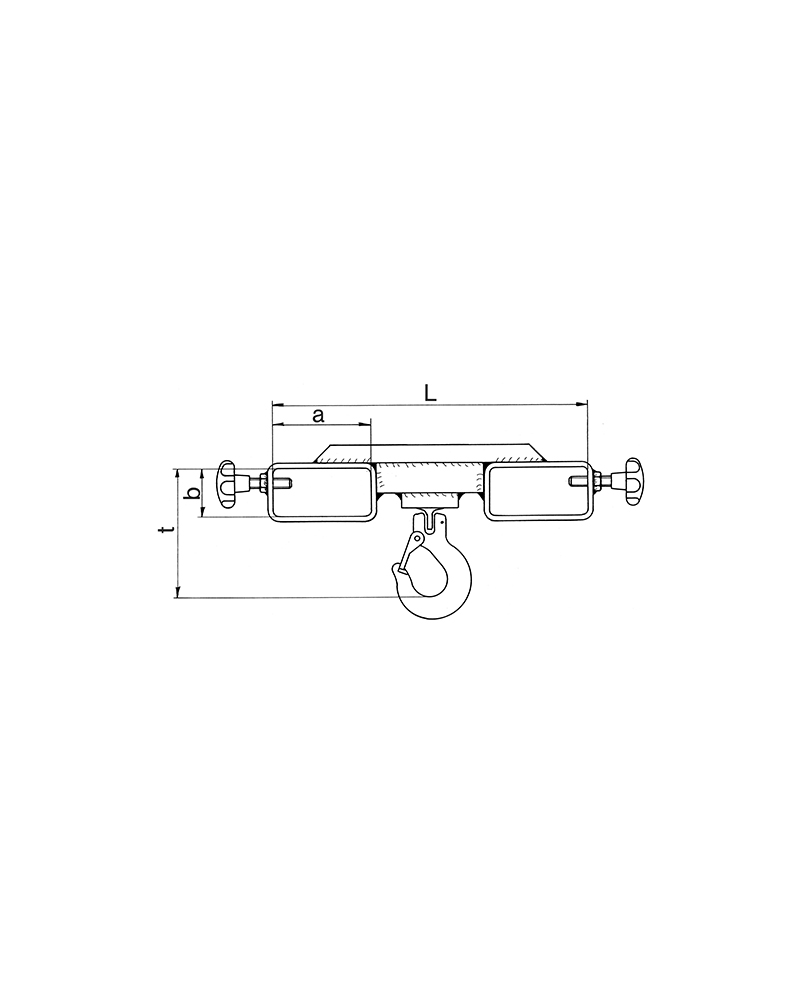

measurements and weight

Code	WLL					Weight	Ident no.
	[t]	a [mm]	b [mm]	l [mm]	t [mm]	[kg]
EGSD 8	2,5	120	60	365	133	16,3	0403308100	Request here
EGSD 10	4,0	140	60	400	149	17,9	0403310100	Request here
EGSD 13	6,7	160	80	400	227	25,3	0403313100	Request here

Please feel free to call us at the following telephone number. We will be happy to advise you!
