ENORM Master link EAE 1

ENORM Master link in Grade 10 acc. to EN 1677-4, DIN 5688-3 for 1-leg chain slings.

The surface is RAL 5021 water blue, powder coated.
Other custom designs are available upon request.
With RFID-chip available.

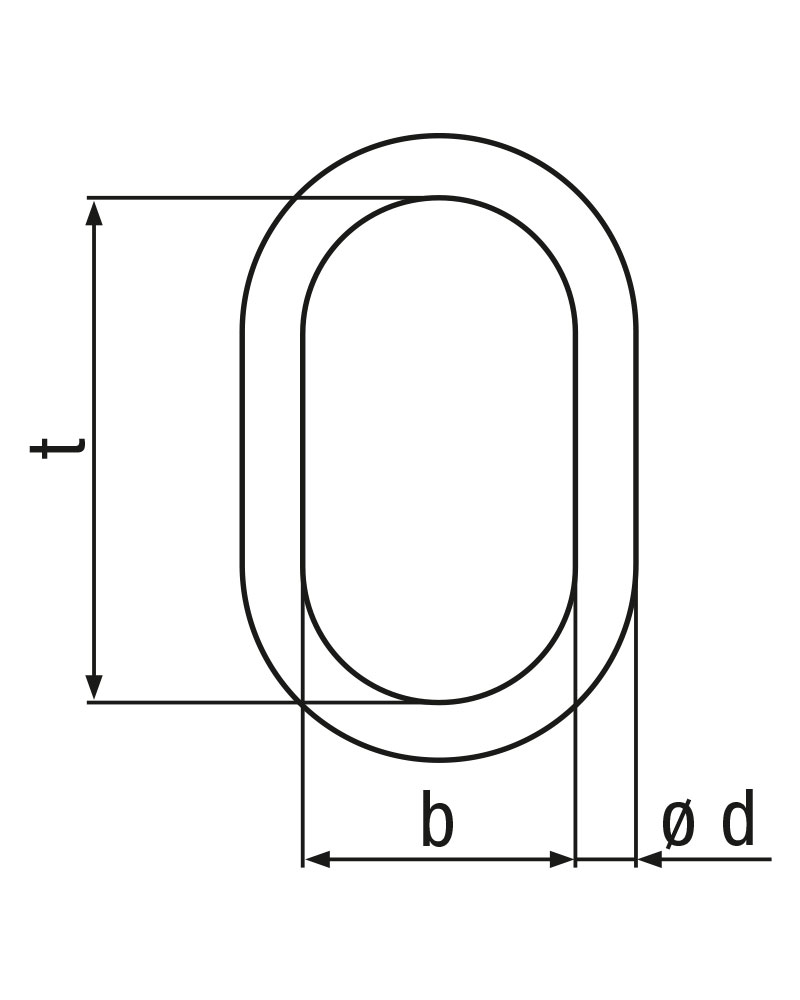

measurements and weight

Code	WLL	WLL			weight	ident no.
	0°-45° [t]	ød [mm]	b [mm]	t [mm]	[kg]
ENORM EAE 1-6	1,4	13	60	110	0,35	0321913000	Request here
ENORM EAE 1-8	2,5	16	60	110	0,6	0321916000	Request here
ENORM EAE 1-10	4,0	18	75	135	0,9	0321918000	Request here
ENORM EAE 1-13	6,7	22	90	160	1,5	0321922000	Request here
ENORM EAE 1-16	10,0	26	100	180	2,4	0321926000	Request here
ENORM EAE 1-18	12,5	32	110	200	3,9	0321932000	Request here
ENORM EAE 1-22	19,0	36	140	260	6,2	0321936000	Request here
ENORM EAE 1-26	26,5	45	180	340	13,0	0321945000	Request here
