NORM8 Master link assembly TA



NORM 8 master link for 3- or 4-leg chain slings in Grade 8 acc. to EN 1677-4, DIN 5688-3.

Download



Consisting of one master link and two joining links which are suitable for assabmblies with a connecting link or welded system.
The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID - chip available.

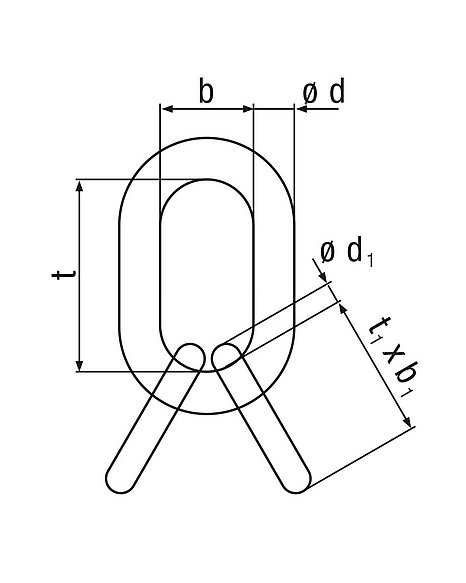

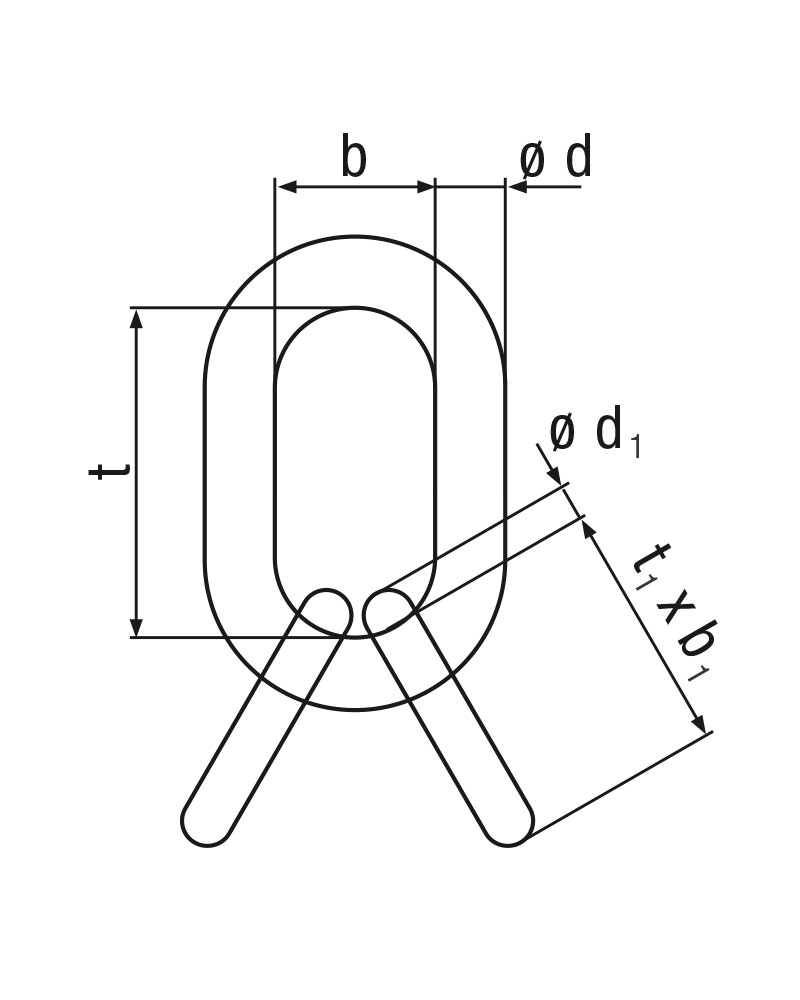

Measurment and weight

Code WLL         Weight Ident no. Download 3D
  0°-45°
[t] 		45°-60°
[t] 		ød/ød1
[mm] 		t/t1
[mm] 		b/b1
[mm]
[kg]
TA 3/4 6 2,36 1,7 18 / 13 135 / 54 75 / 25 1,3 0320306000 Request here
TA 3/4 8 4,25 3 22 / 16 160 / 70 90 / 34 2,4 0320308000 Request here
TA 3/4 10 6,7 4,75 26 / 18 180 / 85 100 / 40 3,6 0320310000 Request here
TA 3/4 13 11,2 8 32 / 22 200 / 115 110 / 50 6,2 0320313000 Request here
TA 3/4 16 17 11,8 36 / 26 260 / 140 140 / 65 10 0320316000 Request here
TA 3/4 18 21,2 15 45 / 32 340 / 150 180 / 70 19 0320318000 Request here
TA 3/4 20 26,5 19 50 / 36 350 / 150 190 / 70 23,4 0320320000 Request here
TA 3/4 22 31,5 22,4 50 / 36 350 / 170 190 / 75 25,9 0320322000 Request here
TA 3/4 26 45 31,5 56 / 40 400 / 170 200 / 80 34,3 0320326000 Request here
TA 3/4 28 50 37,5 63 / 45 430 / 180 220 / 90 45,5 0320328000 Request here
TA 3/4 32 67 47,5 71 / 50 460 / 200 250 / 100 68 0320332000 Request here
TA 3/4 36 85 60 80 / 63 500 / 250 270 / 125 99 0320336000 Request here
TA 3/4 40 106 75 90 / 63 560 / 250 300 / 125 126,3 0320340000 Request here
TA 3/4 45 132 95 100 / 70 610 / 280 330 / 140 173,2 0320345000 Request here
Faktor 2,1 1,5
