NORM8 Master link with clevis connector TAGV 2
Consists of one NORM8 master link and an drop forged clevis connector.
The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

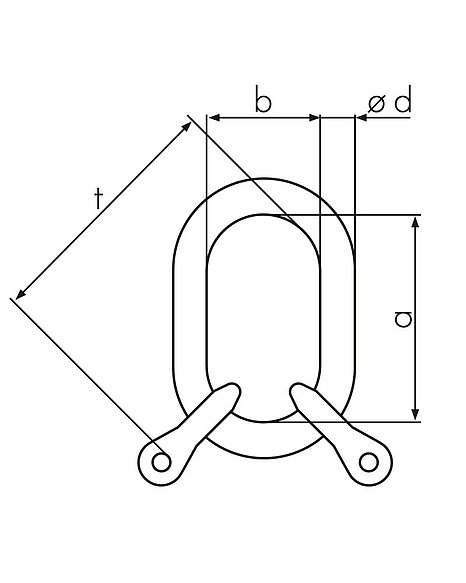

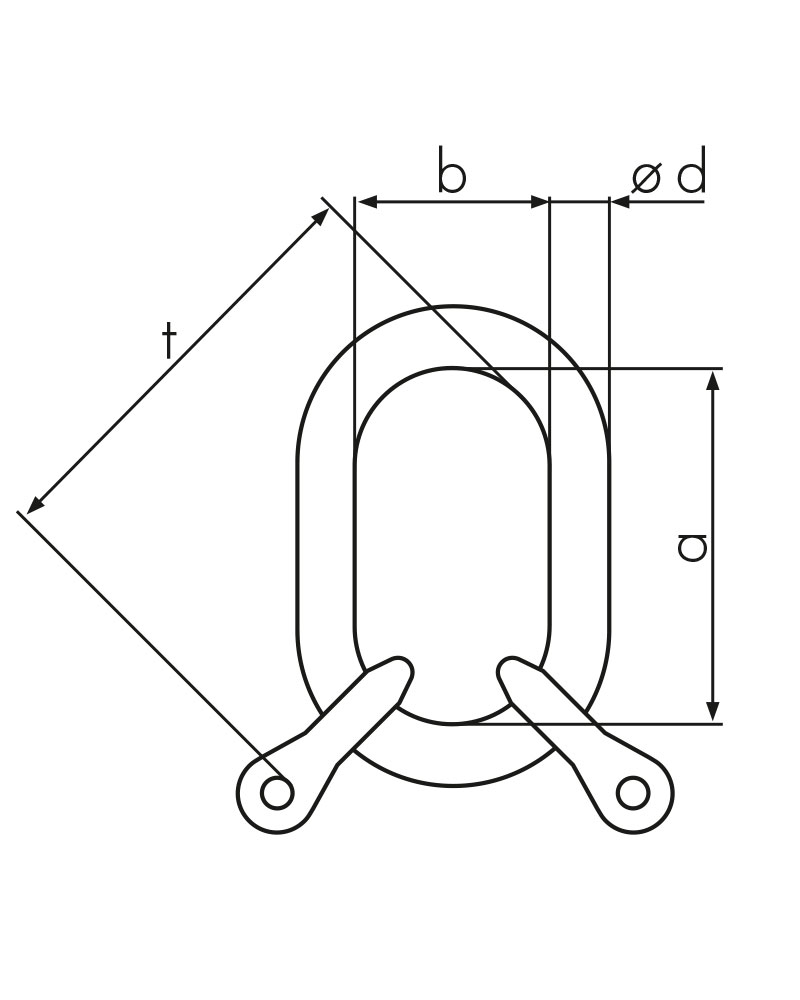

measurements and weight
| Code | WLL | WLL | Weight | Ident no. | Download 3D | |||||
|---|---|---|---|---|---|---|---|---|---|---|
|
0°-45° [t] |
45°-60° [t] |
ød [mm] |
a [mm] |
b [mm] |
t [mm] | [kg] | ||||
| TAGV 2-6 | 1,6 | 1,12 | 13 | 110 | 60 | 140 | 0,6 | 0320606000 | Request here | |
| TAGV 2-8 | 2,8 | 2,0 | 18 | 135 | 75 | 176 | 1,4 | 0320608000 | Request here | |
| TAGV 2-10 | 4,25 | 3,15 | 22 | 160 | 90 | 211 | 2,4 | 0320610000 | Request here | |
| TAGV 2-13 | 7,5 | 5,3 | 26 | 180 | 100 | 243 | 4 | 0320613000 | Request here | |
| TAGV 2-16 | 11,2 | 8,0 | 32 | 200 | 110 | 278 | 7 | 0320616000 | Request here | |
| TAGV 2-18 | 14,0 | 10,0 | 36 | 260 | 140 | 349 | 10,8 | 0320618000 | Request here | |
| TAGV 2-22 | 21,2 | 15,0 | 46 | 340 | 180 | 444 | 20,3 | 0320622000 | Request here |
