NORM8 Master link with clevis connector TBGV 4
Consists of one B-link and an drop forged clevis connector.
The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

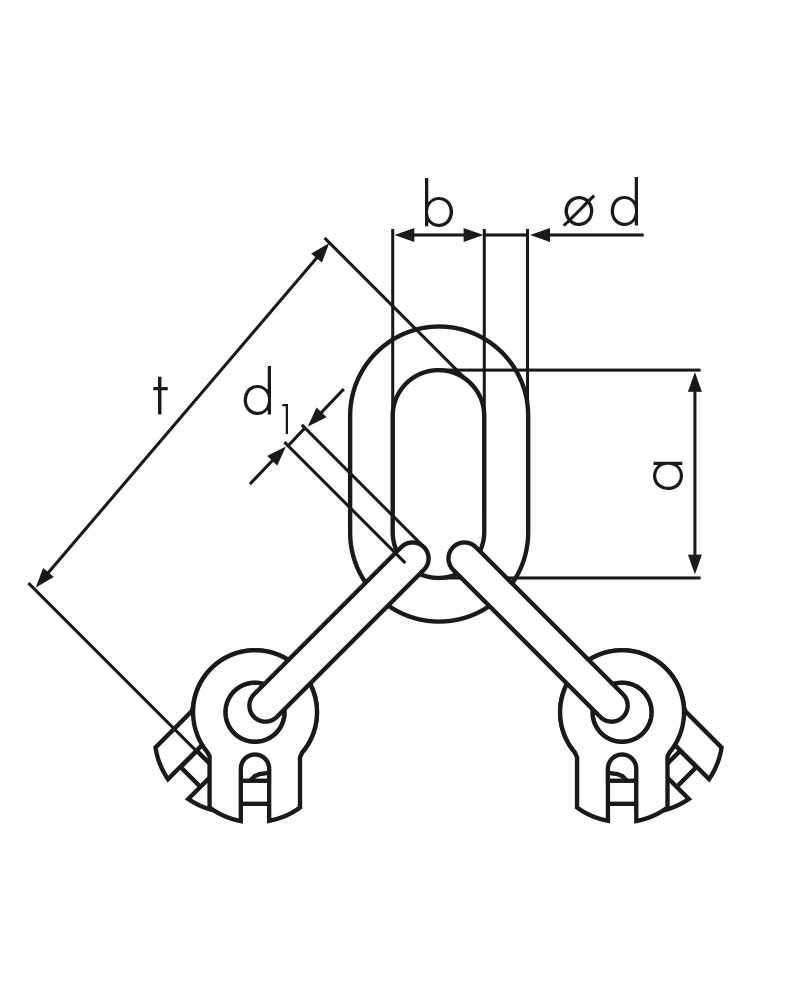

measurements and weight
Code | WLL | WLL | weight | ident no. | Download 3D | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
0°-45° [t] |
45°-60° [t] |
ød [mm] |
a [mm] |
b [mm] |
ød1 [mm] |
t [mm] | [kg] | ||||
TBGV 4-6 | 2,36 | 1,7 | 16 | 70 | 34 | 13 | 154 | 1,2 | 0321306000 | Request here | |
TBGV 4-8 | 4,25 | 3,0 | 18 | 85 | 40 | 16 | 196 | 2,2 | 0321308000 | Request here | |
TBGV 4-10 | 6,7 | 4,75 | 22 | 115 | 50 | 18 | 250 | 3,8 | 0321310000 | Request here | |
TBGV 4-13 | 11,2 | 8,0 | 26 | 140 | 65 | 22 | 318 | 7,2 | 0321313000 | Request here | |
TBGV 4-16 | 17,0 | 11,8 | 32 | 150 | 70 | 26 | 367 | 13 | 0321316000 | Request here | |
TBGV 4-18 | 21,2 | 15,0 | 36 | 170 | 75 | 32 | 410 | 19,4 | 0321318000 | Request here | |
TBGV 4-22 | 31,5 | 22,4 | 40 | 170 | 80 | 36 | 444 | 28,4 | 0321322000 | Request here |
