NORM8 Special master link assembly TAS 1, for crane hooks up to no. 8 - no. 40 EN



NORM8 special master link in Grade 80 for crane hooks up to no.8 (DIN 15400/DIN 15401).

Download



The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

measurements and weight

for crane hooks up to no. 8 (DIN 15400 / DIN 15401)

Für alle anderen Größen passen die Normglieder nach DIN 5688-3.
Code WLL       weight ident no. Download 3D
  0°-45°

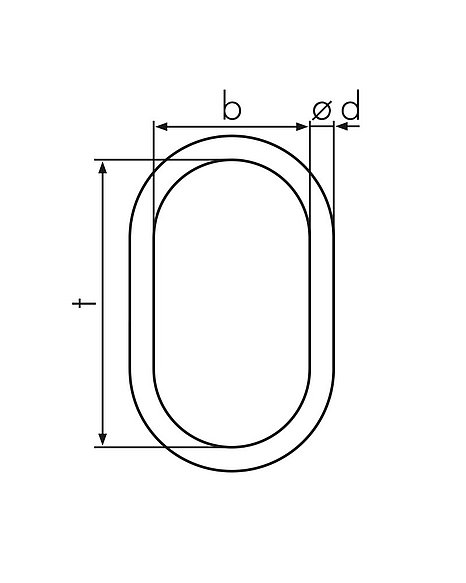

[t] 		ød
[mm] 		t
[mm] 		b
[mm]
[≈kg]
TAS 1–6-8 1,12 13 180 100 0,6 0330106000 Request here
TAS 1–8-8 2,0 18 180 100 1,2 0330108000 Request here
TAS 1–10-8 3,15 20 180 100 1,5 0330110000 Request here
TAS 1–13-8 5,3 22 180 100 1,7 0330113000 Request here

measurements and weight

for crane hooks up to no. 16 (DIN 15400 / DIN 15401)

Für alle anderen Größen passen die Normglieder nach DIN 5688-3.
Code WLL       weight ident no. Download 3D
  0°-45°
[t] 		ød
[mm] 		t
[mm] 		b
[mm]
[≈kg]
TAS 1–6-16 1,12 18 / 13 260 / 54 140 / 25 1,8 0330406000 Request here
TAS 1–8-16 2,0 20 / 16 260 / 70 140 / 34 2,4 0330408000 Request here
TAS 1–10-16 3,15 22 260 140 2,4 0330410000 Request here
TAS 1–13-16 5,3 26 260 140 3,3 0330413000 Request here
TAS 1–16-16 8,0 30 260 140 4,5 0330416000 Request here
TAS 1–18-16 10,0 34 260 140 5,8 0330418000 Request here

MEASUREMENTS AND WEIGHT

for crane hooks up to no. 25 (DIN 15400 / DIN 15401)

Für alle anderen Größen passen die Normglieder nach DIN 5688-3.
Code WLL       weight ident no. Download 3D
  0°-45°
[t] 		ød
[mm] 		t
[mm] 		b
[mm]
[≈kg]
TAS 1–6-25 1,12 20 / 13 340 / 54 180 / 25 2,7 0330706000 Request here
TAS 1–8-25 2,0 22 / 16 340 / 70 180 / 34 3,4 0330708000 Request here
TAS 1 – 10 - 25 3,15 24 / 18 340 / 85 180 / 40 4,1 0330710000 Request here
TAS 1–13-25 5,3 28 / 20 340 / 85 180 / 40 5,7 0330713000 Request here
TAS 1–16-25 8,0 32 / 22 340 / 115 180 / 50 8,4 0330716000 Request here
TAS 1–18-25 10,0 38 / 26 340 / 140 180 / 65 10,9 0330718000 Request here
TAS 1–20-25 12,5 40 340 180 9,8 0330720000 Request here
TAS 1–22-25 15,0 42 340 180 11 0330722000 Request here

Measurement and weight

for crane hooks up to no. 40 (DIN 15400 / DIN 15401)

Für alle anderen Größen passen die Normglieder nach DIN 5688-3.
Code WLL       weight ident no. Download 3D
  0°-45°
[t] 		ød
[mm] 		t
[mm] 		b
[mm]
[≈kg]
TAS 1–6-40 1,12 20 / 13 430 / 54 220 / 25 4,6 0331006000 Request here
TAS 1–8-40 2,0 24 / 16 430 / 70 220 / 34 4,6 0331008000 Request here
TAS 1–10-40 3,15 26 / 18 430 / 85 220 / 40 5,6 0331010000 Request here
TAS 1–13-40 5,3 30 / 20 430 / 85 220 / 40 7,7 0331013000 Request here
TAS 1–16-40 8,0 34 / 22 430 / 115 220 / 50 9,9 0331016000 Request here
TAS 1–18-40 10,0 40 / 26 430 / 140 220 / 65 13,9 0331018000 Request here
TAS 1–20-40 12,5 42 / 26 430 / 140 220 / 65 15,6 0331020000 Request here
TAS 1–22-40 15,0 45 430 220 16 0331022000 Request here
TAS 1–26/28-40 25,0 48 430 220 18 0331028000 Request here
TAS 1–32-40 31,5 54 430 220 23 0331032000 Request here
