ENORM Clevis foundry hook EWHG

ENORM foundry hook EWHG acc. to EN 1677-2. JDT hooks are designed in such a way that in case of overload they do not break brittle, but hook opening visually increases and lets the load slowly slide down.

Operation instruction

Download

Additional information

The surface is RAL 5021 water blue, powder coted or painted.
Other custom designs are available upon request.
With RFID - chip available.

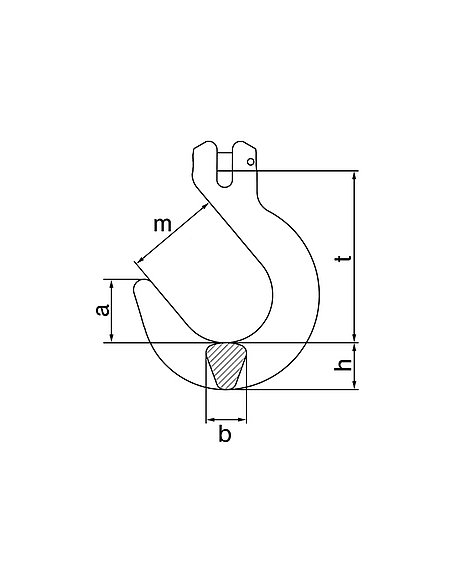

measurements and weight

Code	WLL						Weight	Ident no.
	[t]	a [mm]	b [mm]	h [mm]	m [mm]	t [mm]	[kg]
EWHG 18	12,5	77	53	54	114	218	7,8	0362318000	Request here
EWHG 22	19,0	90	56	65	124	237	11,9	0362322000	Request here
