ENORM Foundry hook EGO

ENORM foundry hook EGO acc. to EN 1677-2. JDT hooks are designed in such a way that in case of overload they do not break brittle, but hook opening visually increases and lets the load slowly slide down.

Same product in another grade

Operation instruction

Download

Additional information

The surface is RAL 5021 water blue, powder coted or painted.
Other custom designs are available upon request.
With RFID -chip available.

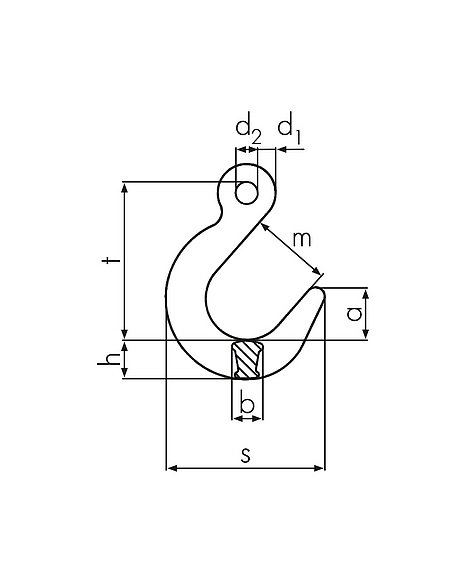

measurements and weight

Code	WLL									Weight	Ident no.
	[t]	a [mm]	b [mm]	d₁ [mm]	d₂ [mm]	h [mm]	m [mm]	s [mm]	t [mm]	[kg]
EGO 6	1,4	30	20	10	13	26	50	97	95	0,5	0362906000	Request here
EGO 8	2,5	40	25	12	18	32	63	120	121	1,0	0362908000	Request here
EGO 10	4,0	49	32	16	20	38	75	147	145	1,9	0362910000	Request here
EGO 13	6,7	58	39	20	25	43	87	170	175	3	0362913000	Request here
EGO 16	10,0	68	45	24	34	54	98	200	204	5,2	0362916000	Request here
EGO 18	12,5	83	56	32	46	65	118	254	250	10,1	0362918000	Request here
EGO 22	19,0	83	56	32	46	65	118	254	250	10,1	0362922000	Request here
