ENORM Qick latch for multi bucket system EAOS

ENORM Quick latch for multi bucket systems EAOS acc. to EN 1677-1.
JDT hooks are designed in such a way that in case of overload they do not break brittle, but hook opening visually increases and lets the load slowly slide down.

Spare parts

Operation instruction

Download

Additional information

The surface is RAL 5021 water blue, powder coted or painted.
Other custom designs are available upon request.
With RFID - chip available.

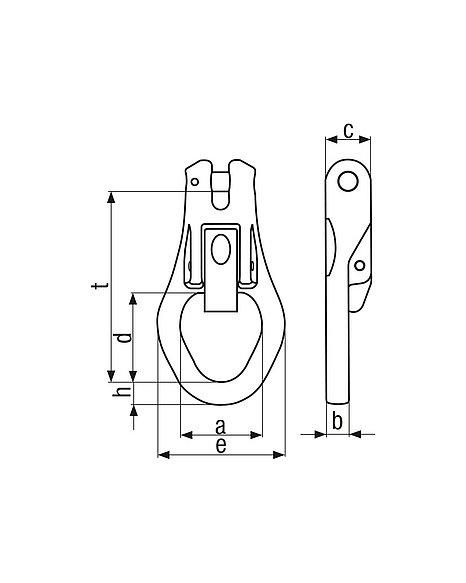

measurements and weight

Code	WLL								Weight	Ident no.
	[t]	a [mm]	b [mm]	c [mm]	d [mm]	e [mm]	h [mm]	t [mm]	[kg]
EAOS 13	6,7	72	20	40	79	112	20	168	2,5	0363513000	Request here
EAOS 16	10,0	72	20	40	79	112	20	166	2,6	0363516000	Request here
