ENORM Self locking hook EAHG

ENORM clevis sling automatic hook EAHG acc. to EN 1677-3 .JDT hooks are designed in such a way that in case of overload they do not break brittle, but hook opening visually increases and lets the load slowly slide down.

Same product in another grade

Operation instruction

Download

Additional information

The surface is RAL 5021 water blue, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

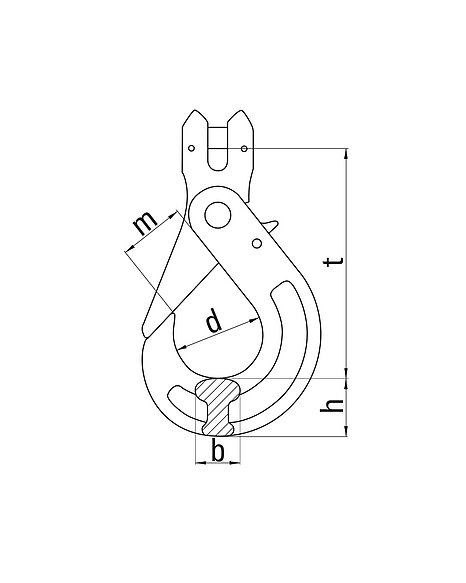

measurements and weight

Code	WLL						Weight	Ident no.
	[t]	b [mm]	d [mm]	m [mm]	h [mm]	t [mm]	[kg]
EAHG 6	1,4	15	32	31	21	95	0,5	0363806100
EAHG 8	2,5	21	45	40	26	119	0,8	0363808100	Request here
EAHG 10	4	27	57	50	30	140	1,4	0363810100	Request here
EAHG 13	6,7	32	66	52	41	178	2,9	0363813100	Request here
EAHG 16	10	38	73	73	51	215	5,5	0363816100	Request here
EAHG 18	12,5	45	90	85	58	227	7,9	0363818100	Request here
EAHG 22	19,0	53	95	94	68	266	12,2	0363822100	Request here
