NORM8 Eye sling hook TSiH

NORM8 clevis sling hook TSIH acc. to EN 1677-2 can be load directions. The design of the hook prevents the abrupt breaking of the hook in case of overload.

Spare parts

Operation instruction

Download

Additional information

The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

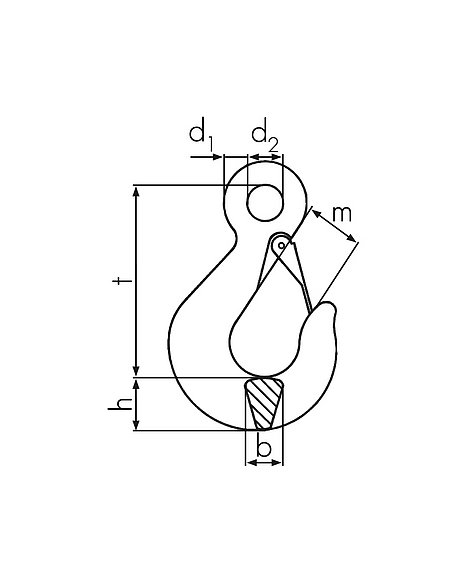

measurements and weight

The TSiH eye sling hook is a load hook with eye connection, also known as a slip hook or eye lifting hook. The integrated safety latch prevents the load from slipping out.
Code	WLL							Weight	Ident no.
	[t]	b [mm]	d₁ [mm]	d₂ [mm]	h [mm]	m [mm]	t [mm]	[kg]
TSiH 28	25,0	63	36	60	83	88	313	17,2	0361328000	Request here
TSiH 32	31,5	70	40	66	92	98	349	22	0361332000	Request here
TSiH 36	40,0	78	45	72	103	109	388	32	0361336000	Request here
TSiH 40	50,0	89	51	84	116	124	442	46	0361340000	Request here
TSiH 45	63,0	99	56	90	130	138	494	63	0361345000	Request here
