NORM8 S-Hook TFH

NORM8 S-Hook (open)

The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

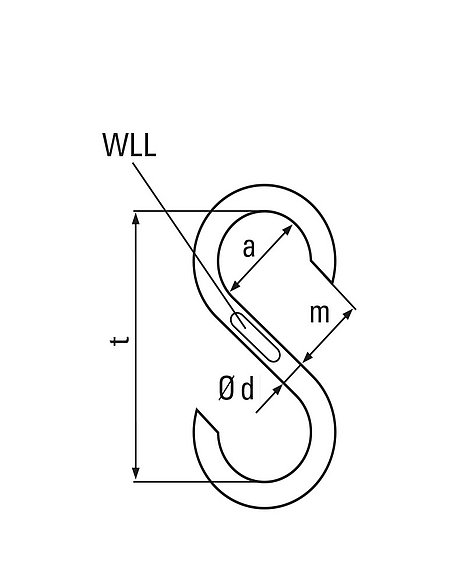

measurements and weight

Code	WLL					weight	ident no.
	[t]	ød [mm]	a [mm]	m [mm]	t [mm]	[kg]
TFH 8	0,13	8	28	23	80	0,08	0400908000	Request here
TFH 10	0,2	10	36	30	100	0,15	0400910000	Request here
TFH 13	0,35	13	46	40	130	0,35	0400913000	Request here
TFH 16	0,6	16	50	45	145	0,51	0400916000	Request here
TFH 18	0,75	18	56	50	160	0,82	0400918000	Request here
TFH 20	1	20	64	55	180	1,1	0400920000	Request here
TFH 30	2,0	30	80	72	230	3	0400930000	Request here
TFH 36	3,15	36	104	90	300	5,65	0400936000	Request here
TFH 50	5,3	50	140	120	400	16,0	0400950000	Request here
TFH 60	8,0	60	160	135	500	27,0	0400960000	Request here
TFH 70	10,0	70	166	138	550	40,0	0400970000	Request here
