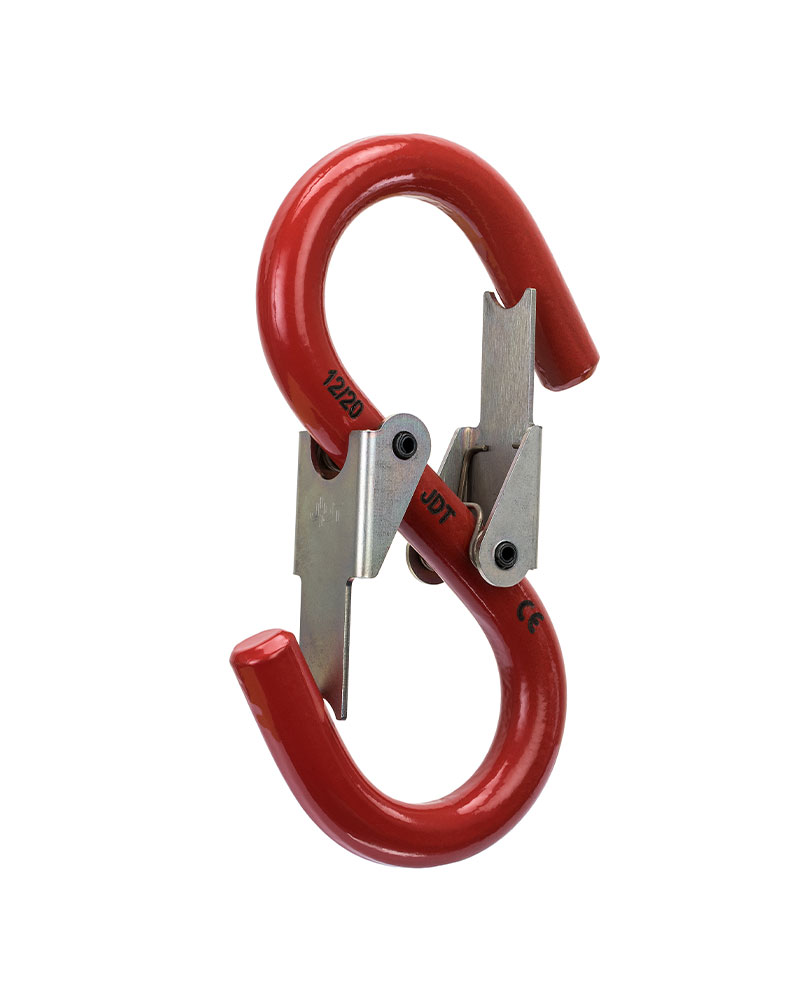

NORM8 S-Hook TFH-S with Saftey latch
The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.
measurements and weight
Code | WLL | weight | ident no. | Download 3D | ||||||
---|---|---|---|---|---|---|---|---|---|---|
[t] |
ød [mm] |
a [mm] |
m [mm] |
t [mm] | [kg] | |||||
TFH-S 8 | 0,13 | 8 | 28 | 23 | 80 | 0,1 | 0400908100 | Request here | ||
TFH-S 10 | 0,2 | 10 | 36 | 30 | 100 | 0,2 | 0400910100 | Request here | ||
TFH-S 13 | 0,35 | 13 | 46 | 40 | 130 | 0,4 | 0400913100 | Request here | ||
TFH-S 16 | 0,6 | 16 | 50 | 45 | 145 | 0,5 | 0400916100 | Request here | ||
TFH-S 18 | 0,75 | 18 | 56 | 50 | 160 | 0,8 | 0400918100 | Request here | ||
TFH-S 20 | 1 | 20 | 64 | 55 | 180 | 1,1 | 0400920100 | Request here | ||
TFH-S 30 | 2,0 | 30 | 80 | 72 | 230 | 3 | 0400930100 | Request here | ||
TFH-S 36 | 3,15 | 36 | 104 | 90 | 300 | 5,7 | 0400936100 | Request here | ||
TFH-S 50 | 5,3 | 50 | 140 | 120 | 400 | 16 | 0400950100 | Request here |
