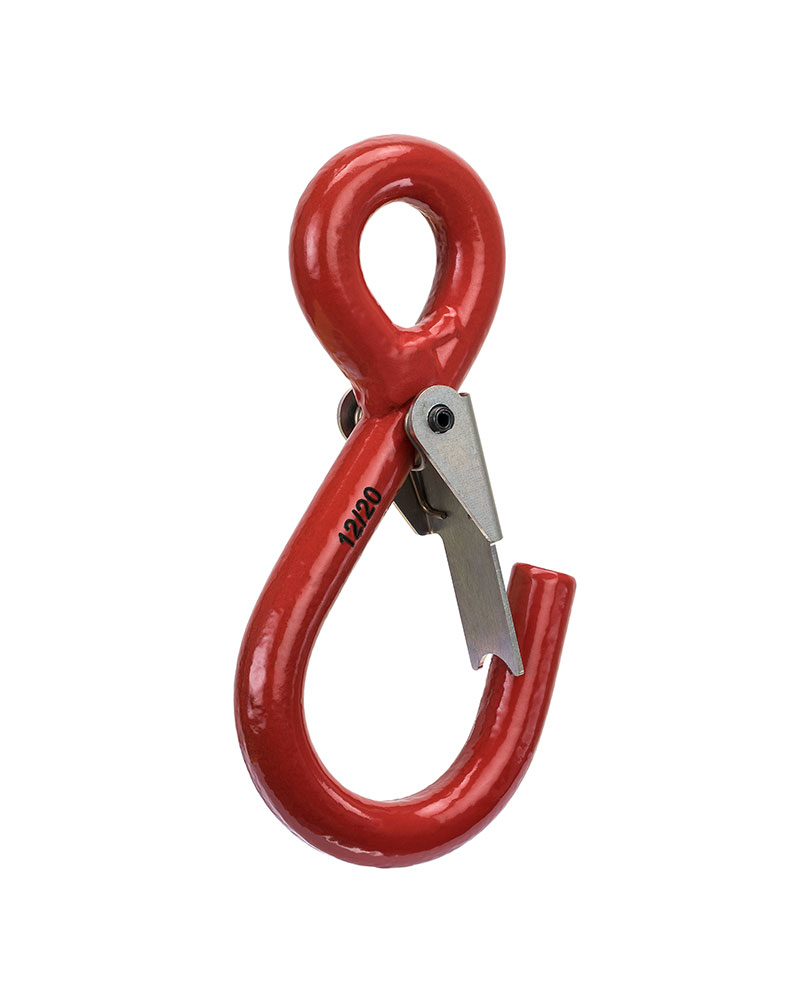

NORM8 S-Hook TRH-S with saftey latch
The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

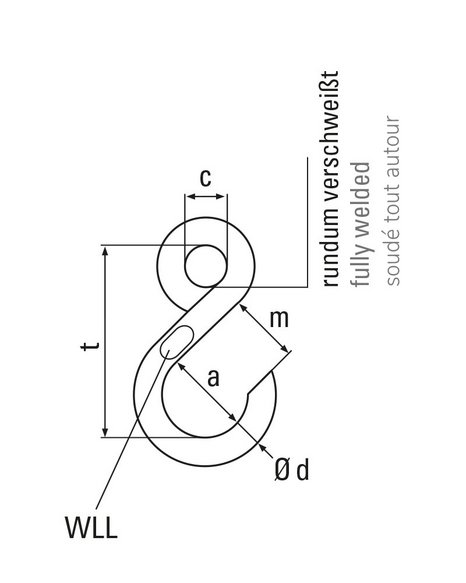

measurements and weight
Code | WLL | weight | ident no. | Download 3D | ||||||
---|---|---|---|---|---|---|---|---|---|---|
[t] |
ød [mm] |
a [mm] |
m [mm] |
c [mm] |
t [mm] | [kg] | ||||
TRH-S 8 | 0,13 | 8 | 28 | 23 | 15 | 64 | 0,1 | 0401008100 | Request here | |
TRH-S 10 | 0,2 | 10 | 36 | 30 | 17 | 78 | 0,1 | 0401010100 | Request here | |
TRH-S 13 | 0,35 | 13 | 46 | 40 | 20 | 96 | 0,3 | 0401013100 | Request here | |
TRH-S 16 | 0,6 | 16 | 50 | 45 | 24 | 114 | 0,4 | 0401016100 | Request here | |
TRH-S 18 | 0,75 | 18 | 56 | 50 | 27 | 128 | 0,7 | 0401018100 | Request here | |
TRH-S 20 | 1,0 | 20 | 64 | 55 | 30 | 144 | 0,9 | 0401020100 | Request here | |
TRH-S 30 | 2,0 | 30 | 80 | 72 | 45 | 198 | 2,9 | 0401030100 | Request here | |
TRH-S 36 | 3,15 | 36 | 104 | 90 | 60 | 262 | 5,4 | 0401036100 | Request here |
