ENORM Shortening clutch EVKS-V

ENORM shortening clutches EVKS-V with locking acc. to DIN 5692.

The surface is RAL 5021 water blue, powder coated or painted.
Other custom designs are available upon request.
With RFID - chip available

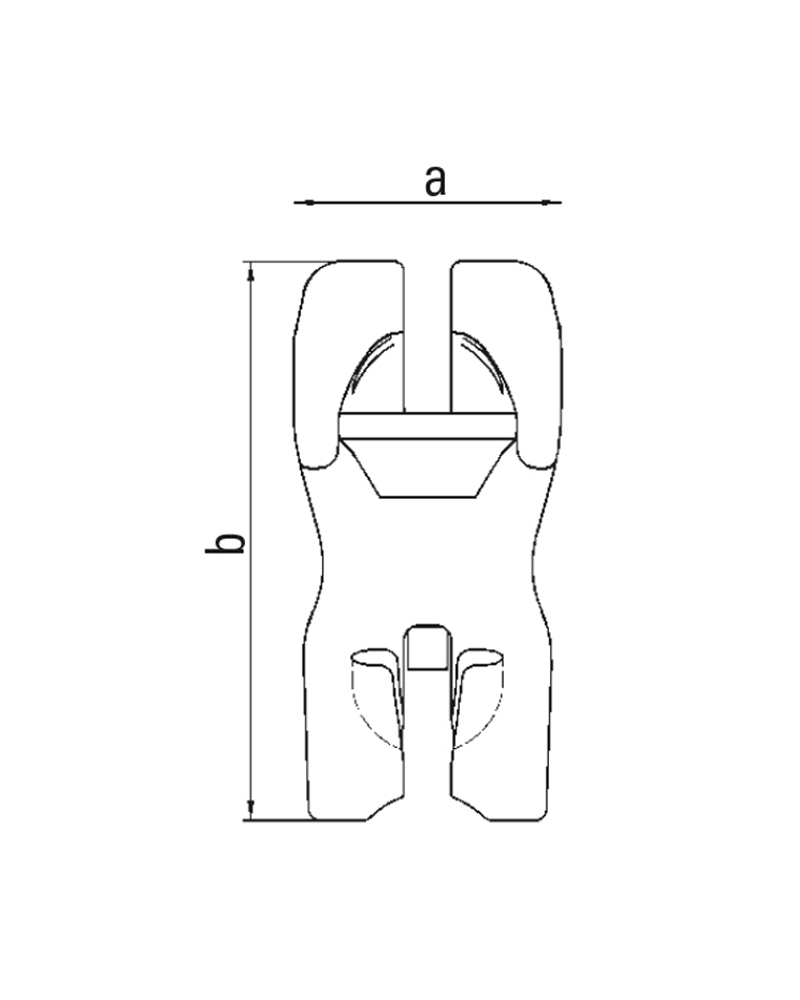

measurements and weight

Code	WLL			Weight	Ident no.
	[t]	a [mm]	b [mm]	[kg]
EVKS-V 6	1,4	46	121	0,7	0371606000	Request here
EVKS-V 8	2,5	58	153	1,1	0371608002	Request here
EVKS-V 10	4,0	66	139	1,6	0371610000	Request here
EVKS-V 13	6,7	82	177	2,9	0371613000	Request here
EVKS-V 16	10,0	103	220	5,1	0371616000	Request here

Feel free to call us at the following phone number. We will be happy to advise you!
