MAXNORM Shortening hook with clevis sling MVH without latch

ENORM shortening clutches MVH with clevis head without lock acc. to DIN 5692.

The surface is RAL 5020 ocean blue, powder coated or painted.
With RFID -chip available.

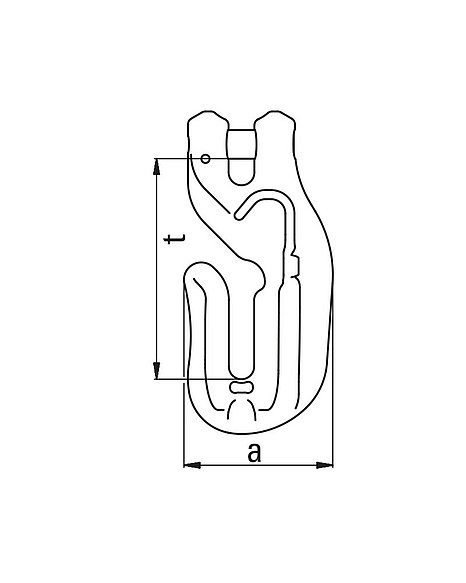

measurements and weight

Code	WLL					Weight	Ident no.
	[t]	a [mm]	b [mm]	c [mm]	t [mm]	[kg]
MVH 6	1,8	48	26	25	65	0,4	0373106100	Request here
MVH 8	3,0	58	28	34	90	0,8	0373108100	Request here
MVH 10	5,0	77	32	40	98	1,3	0373110100	Request here
MVH 13	8,1	91	40	48	134	2,9	0373113100	Request here
MVH 16	12,5	122	70	88	155	5,8	0373116100	Request here
