Offshore Master link assembly



Offshore Master Link Assembly for wire ropes Grade 80 according to DNV-ST-E271, DNV-ST-E273.

Download



  • Certified according to DNV 2.7-1, DNV 2.7-3
  • Type Approval No. S- XXXX
  • Safety factor = 5:1
  • Manufactured according to EN 1677-4
  • Operating temperature from -40° C

Measurements and weight

Code               Weight Ident no.
  WLL

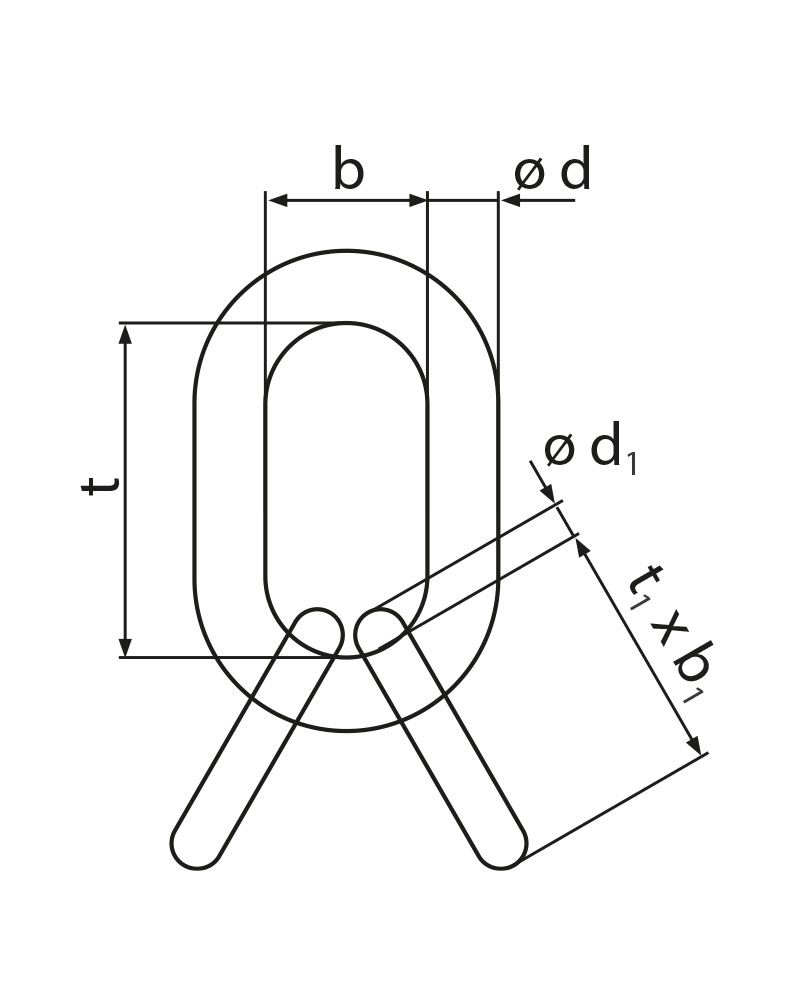

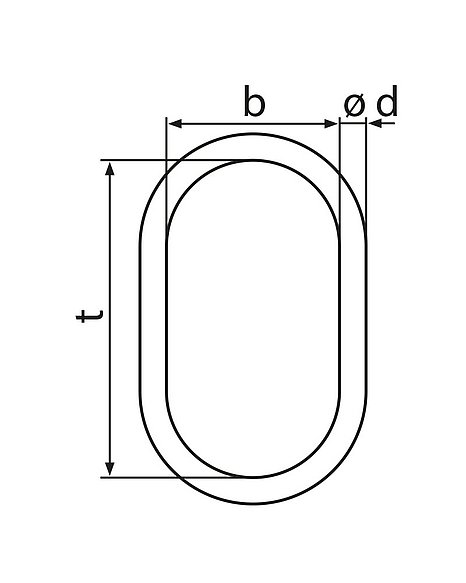

[mm] 		d
[mm] 		t
[mm] 		b
[mm] 		d1
[mm] 		t1
[mm] 		b1
[mm] 		kg
TOA 16 4,10 16 150 75 14 125 60 1,57 0323416000 Request here
TOA 22 11,0 22 162 90 22 162 90 4,62 0323422000 Request here
TOA 22-2 7,0 22 270 140 22 162 90 5,48 0323422100 Request here
TOA 26 9,3 26 270 140 22 162 90 6,58 0323426000 Request here
TOA 29 16,5 29 200 110 22 162 90 6,28 0323429100 Request here
TOA 29-2 14,5 29 270 140 22 162 90 7,18 0323429000 Request here
TOA 32 19,0 32 270 140 29 200 110 11,50 0323432000 Request here
TOA 36 26,0 36 270 140 29 200 110 12,90 0323436000 Request here
TOA 40 28,5 40 280 155 32 270 140 18,70 0323440000 Request here
TOA 45 39,0 45 320 175 36 270 140 25,80 0323445000 Request here
TOA 52 51,0 52 350 195 45 320 175 43,60 0323452000 Request here
TOA 68 75,0 68 410 220 52 350 195 72,60 0323468000 Request here
