Ring Point

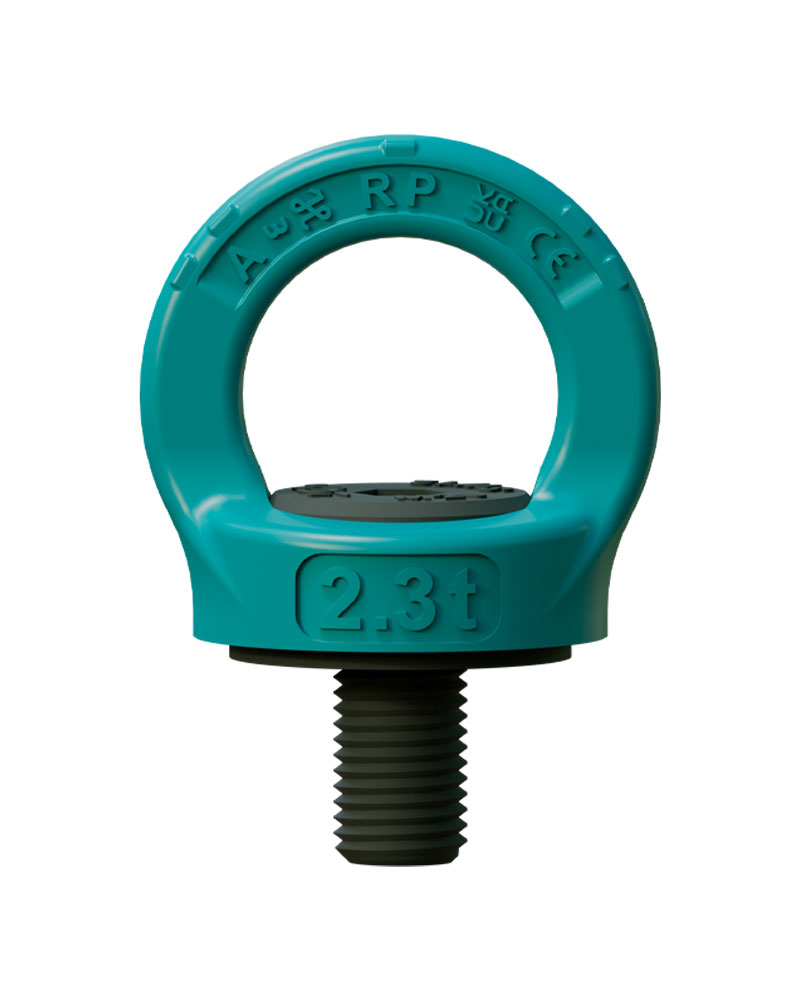

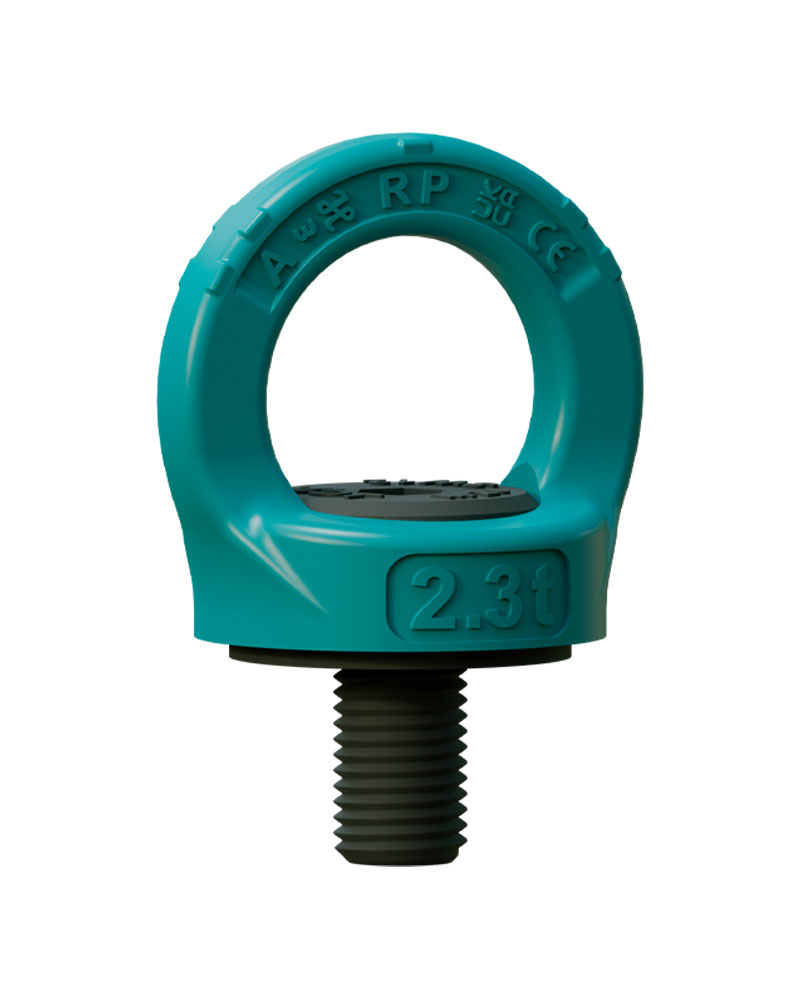

The Ring Point has a unique and patented design which allows the toolless assembly and disassembly.

Download

With RFID -chip available.

WLL

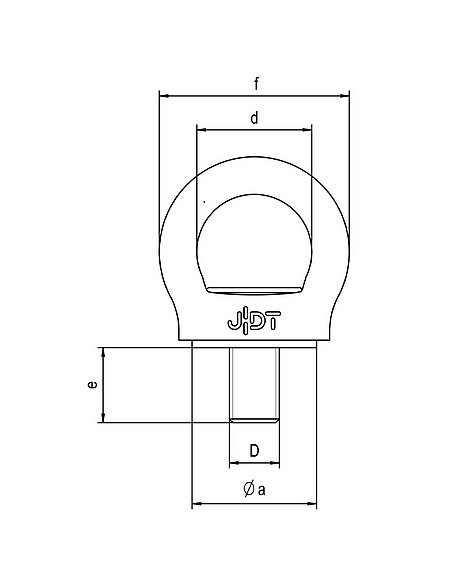

Measurements and Weight

Code Thread Version Pitch                 Weight Ident no.

D x e (mm)
DIN 13 		a
mm 		b
mm 		c
mm 		d
mm 		f
mm 		t
mm 		g
mm 		n
mm 		kg

RP 0,35 M 8x18 1,25 30 10 5 25 45 37 21 6 0,12 0382100008
RP 0,5 M 10x18 1,5 30 10 5 25 45 37 21 6 0,13 0382100001
RP 0,7 M 12x18 1,8 36,5 13 7 34 60 49 30 8 0,3 0382100000 Request here
RP 1,5 M 16x20 2,0 42 14 10 36 64 51 32 10 0,4 0382101000 Request here
RP 2,3 M 20x30 2,5 50 15 12 46 76 61 37 12 0,7 0382102000 Request here
RP 3,2 M 24x30 3,0 64 19 15 52 90 74 47 14 1,2 0382103000 Request here
RP 4,5 M 30x35 3,5 75 25 19 62 112 91 56 17 2,2 0382104000 Request here

Measurement and weight - UNC -

Standard lenght

Code Thread version                 Weight Ident.no.

D x e (mm) 		a
mm 		b
mm 		c
mm 		d
mm 		f
mm 		t
mm 		g
mm 		n
mm 		kg

RP 0,35 5/16"-18UNC-2A x 12 mm 30 10 5 25 45 37 21 6 0,12 0382100505 Request know
RP 0,35 3/8"-16UNC-2A x 15 mm 30 10 5 25 45 37 21 6 0,12 0382100506 Request know
RP 0,5 7/16"-14UNC-2A x 15 mm 30 10 5 25 45 37 21 6 0,13 0382100507 Request know
RP 0,7 1/2" - 13UNC-2A x 18 36,5 13 7 34 60 49 30 8 0,3 0382100501 Request know
RP 1,5 5/8" - 11UNC-2A x 20 42 14 10 36 64 51 32 10 0,4 0382101501 Request know
RP 2,3 3/4" - 10UNC-2A x 30 50 15 12 46 76 61 37 12 0,7 0382102502 Request know
RP 2,3 7/8" - 9UNC-2A x 30 50 15 12 46 76 61 37 12 0,7 0382102503 Request know
RP 3,2 1" - 8UNC-2A x 35 64 19 15 52 90 74 14 47 1,2 0382103501 Request know
RP 4,5 1 1/4"-7 UNC-2A x 40 75 25 19 62 112 91 17 56 2,2 0382104501 Request know

Additional information

YOU STILL HAVE QUESTIONS ABOUT A SPECIFIC PRODUCT?

Feel free to call us at the following phone number. We will be happy to advise you!

Tel.: +49 2304 757-0
