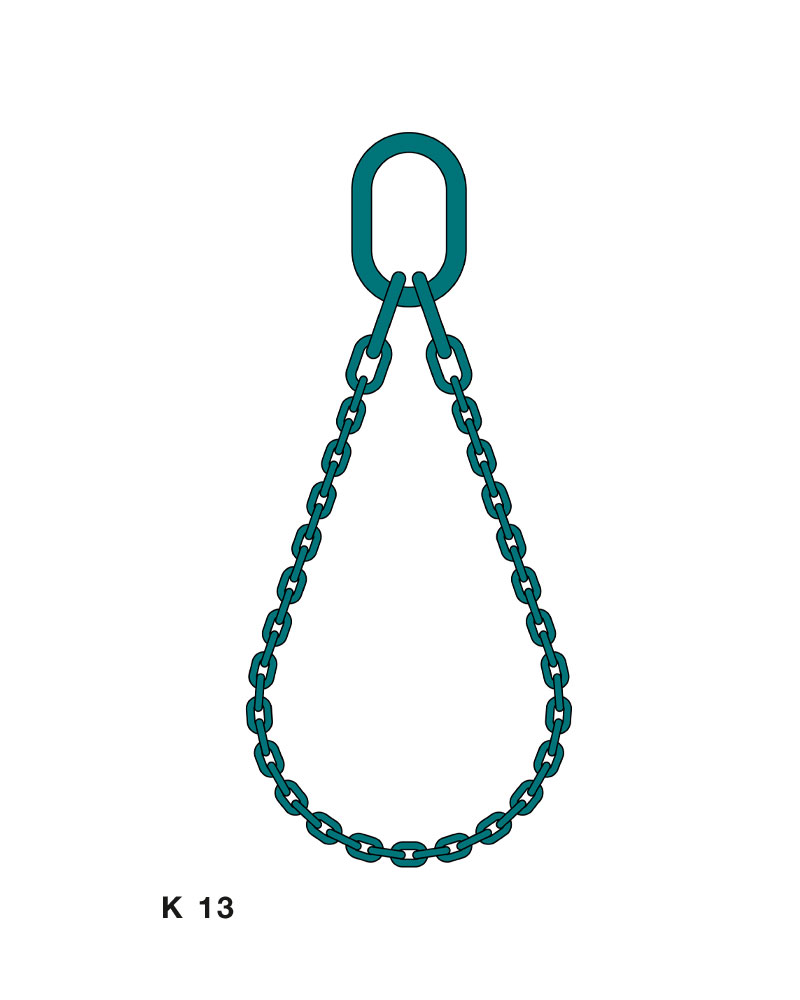

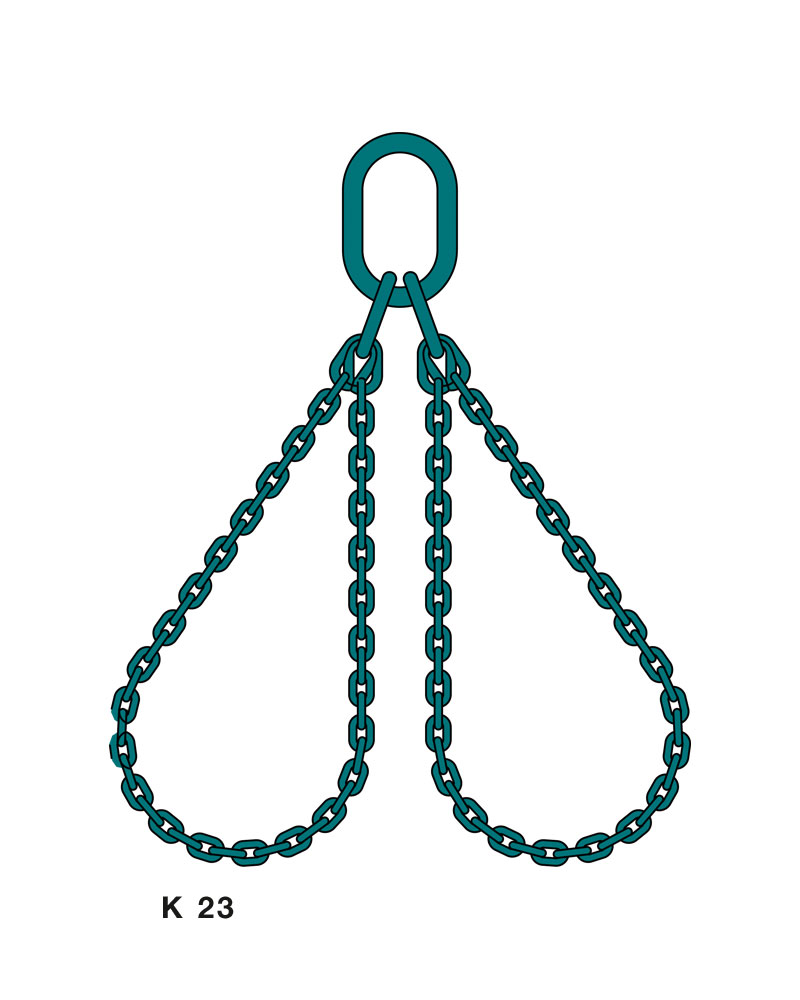

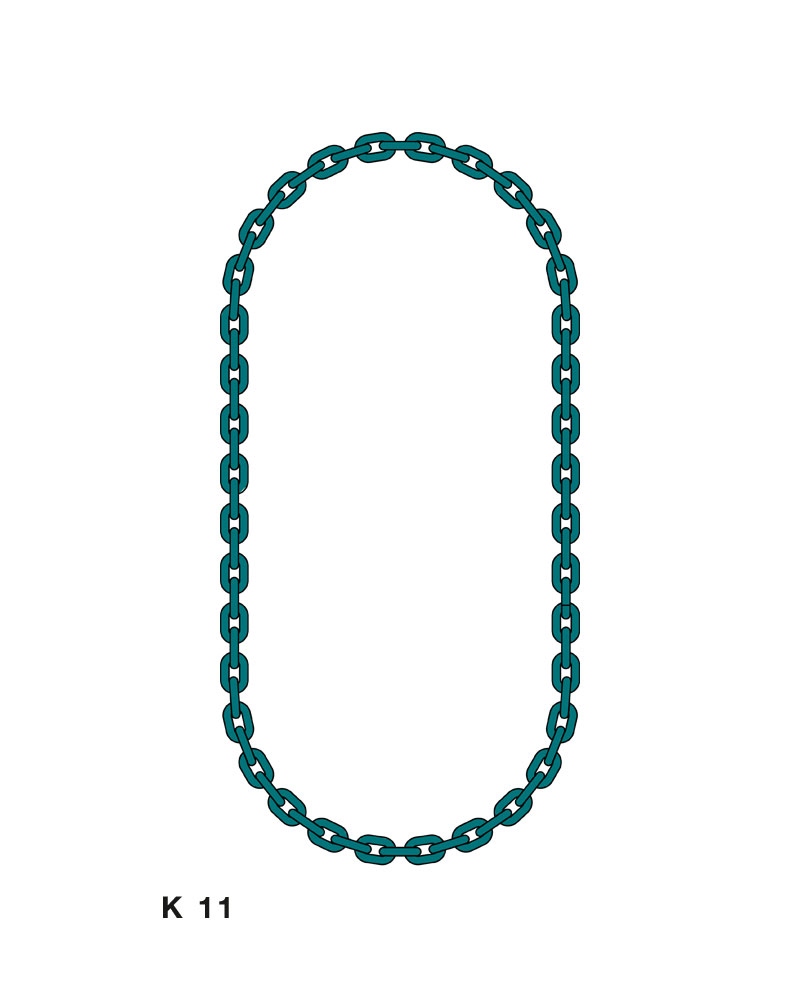

ENORM Endless chain sling

Same product in another grade

Operation and assembly instruction

Factor and working load EN 818-4 / EN 818

* When used for the intended purpose - without lacing, no sharp edges, etc. - see load capacity table 1
	WLL	WLL	WLL	WLL	WLL
Inclination angle [mm]	90° [t]	0° - 45° [t]	45° - 60° [t]	0° - 45° [t]	45° - 60° [t]
6 x 18	2,24	1,6	1,12	2,3	1,7
7 x 21	2,5	1,7	1,25	2,65	1,8
8 x 24	4	2,8	2	4,2	3
10 x 30	6,3	4,25	3,2	6,7	4,75
13 x 39	10,6	7,5	5,3	11,2	8
16 x 48	16	11,2	8	17	11,8
18 x 54	20	14	10	21,2	15
20 x 60	20	14	10	21,2	15
22 x 66	30	21,2	15	31,5	22,4
26 x 78	42,4	29	21,2	45	32
28 x 84	40	26,5	20	42,5	30
32 x 96	50	35,5	25	53	37,5
36 x 108	63	45	31,5	67	47,5
40 x 120	80	56	40	85	60
45 x 135	100	71	50	106	75
factor	1,6	1,1 (1,4)*	0,8 (1)*	1,7 (2,1)*	1,2 (1,5)*
