MAXNORM Endless chain sling

Factor and working load EN 818-4 / EN 818

*When used for the intended purpose - without lacing, no sharp edges, et cetera. - see load capacity table 1

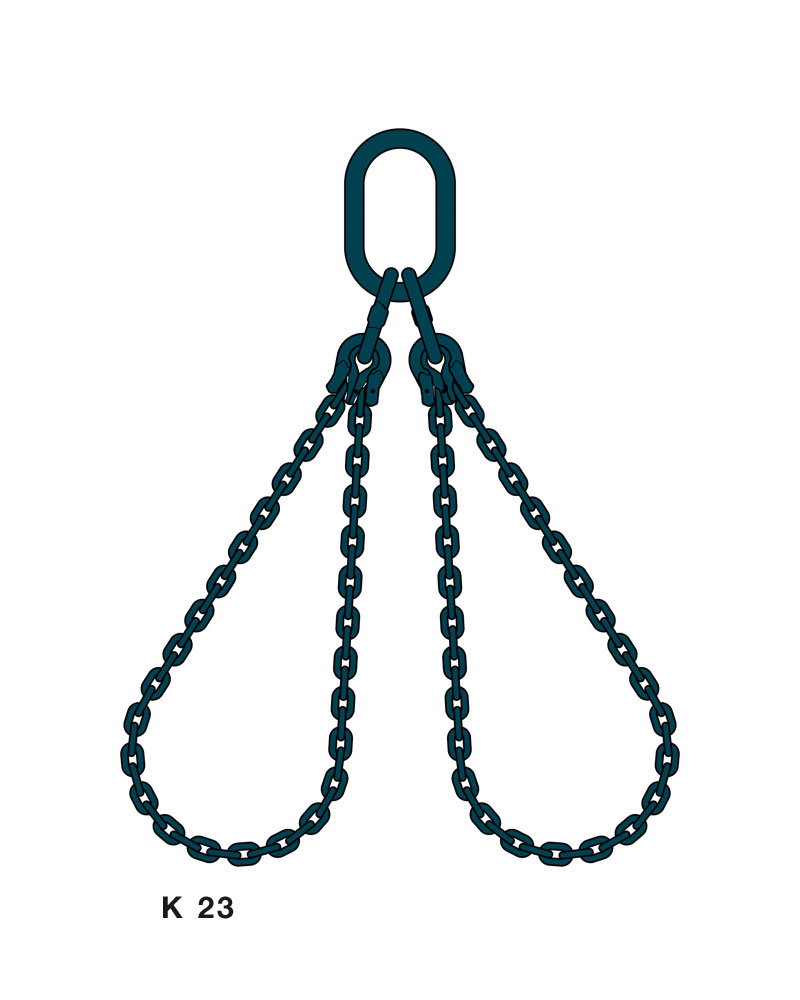

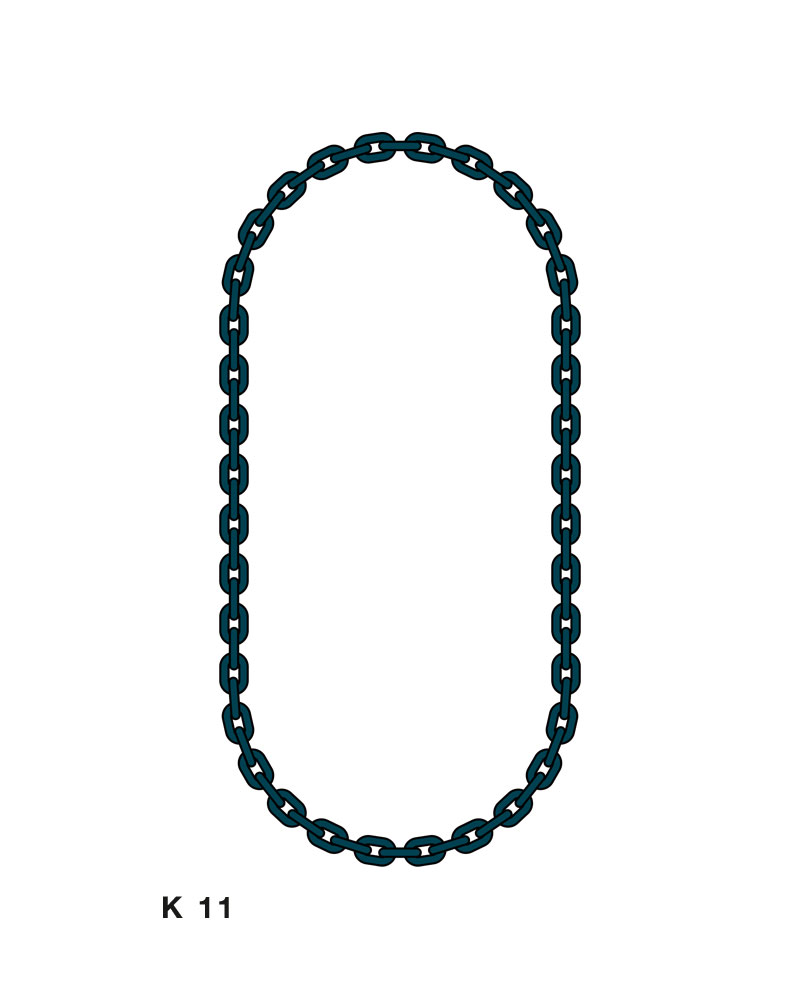

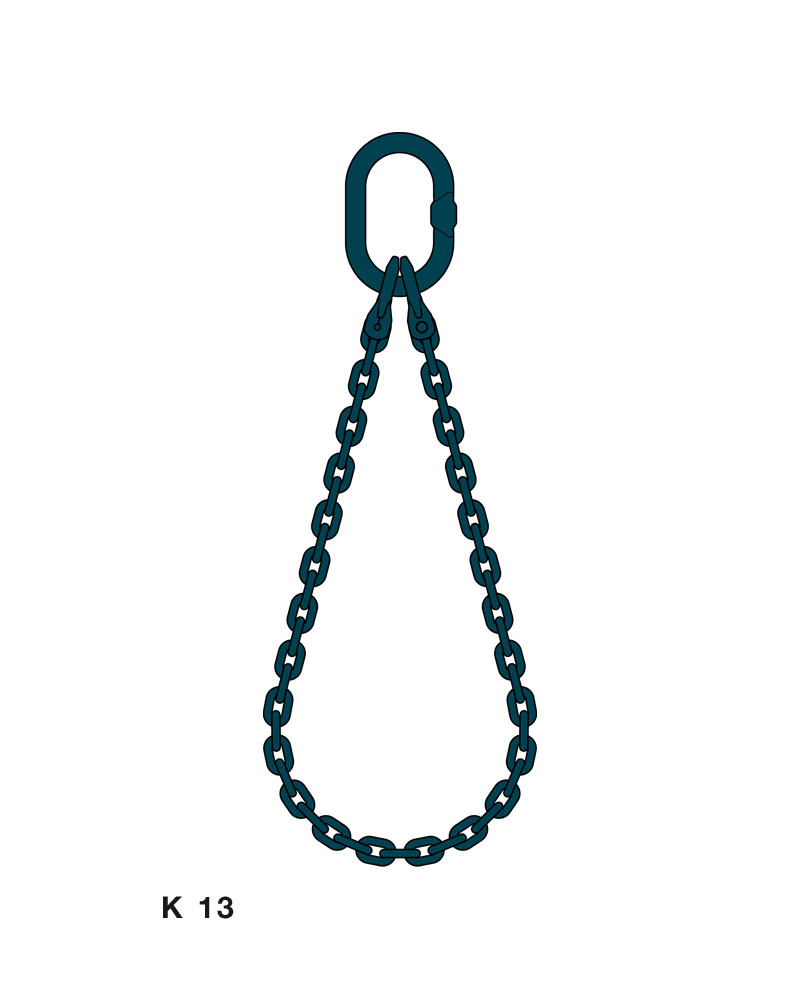

	WLL K11	WLL K13	WLL K13	WLL K 23	WLL K23
Inclination angle [mm]	90° [t]	0° - 45° [t]	45° - 60° [t]	0° - 45° [t]	45° - 60° [t]
6 x 18	2,9	2,0	1,4	3,05	2,1
8 x 24	4,8	3,3	2,4	5,1	3,6
10 x 30	8,0	5,5	4,0	8,5	6,0
13 x 39	13,0	8,9	6,5	13,8	9,7
16 x 48	20,0	14,0	10,0	21,2	15,0
Factor	1,6	1,1(1,4)	0,8(1)	1,7(2,1)	1,2(1,5)

Products in this application area must meet the highest standards. Contact us for your individual requirements.

Feel free to call us at the following phone number. We will be happy to advise you!
