NORM8 Clevis connector with shackle TGVS

NORM8 clevis connectors with shackle.
Manufactured acc. to EN 1677-1.

shackle

clevis

The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID-chip available.

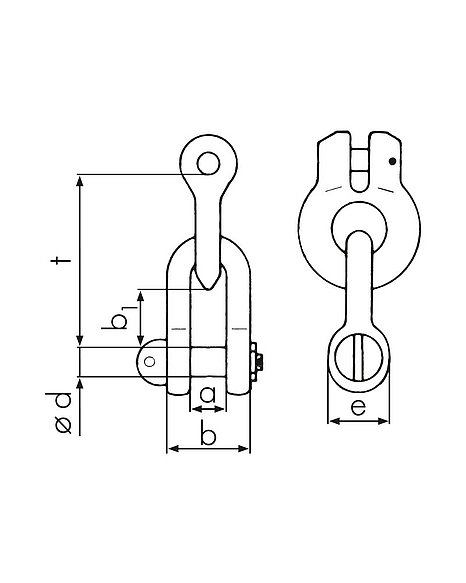

measurements and weight

Code	WLL							Weight	Ident no.
	[t]	a [mm]	b [mm]	b₁ [mm]	ød [mm]	e [mm]	t [mm]	[kg]
TGVS 6	1,12	13,5	32	19	10	20	60	0,2	0352006100	Request here
TGVS 8	2,0	16	35	18	12	24	75	0,4	0352008100	Request here
TGVS 10	3,15	23	49	31	16	31	100	0,8	0352010100	Request here
TGVS 13	5,3	27	61	37	20	38	124	1,6	0352013100	Request here
TGVS 16	8,0	34	76	43	24	48	151	3	0352016100	Request here
TGVS 18	10,0	40	88	50	27	56	173	4,5	0352018100	Request here
