NORM8 Connecting link TBS

NORM8 drop-forged connecting link suitable for JDT's modular system.
Manufactured acc. to EN 1677-1.

The connecting halves are secured by bolts and sleeves.

The surface is RAL 3000 flamed red, powder coated or painted.
Other custom designs are available upon request.
With RFID-chip available.

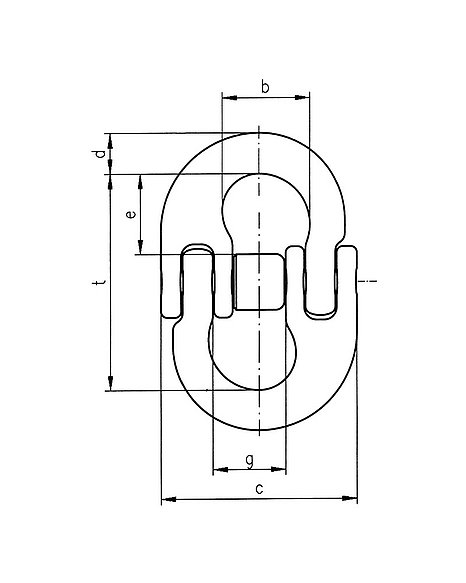

measurements and weight

Code	WLL								Weight	Ident no.
	[t]	a [mm]	b [mm]	c [mm]	d [mm]	e [mm]	g [mm]	t [mm]	[kg]
TBS 6	1,12	11	19	40	8	17	17	45	0,1	0352106000	Request here
TBS 8	2,0	14	22	53	11	22	21	59	0,2	0352108000	Request here
TBS 10	3,15	18	29	68	12	26	28	70	0,3	0352110000	Request here
TBS 13	5,3	23	33	77	16	32	30	87	0,6	0352113000	Request here
TBS 16	8,0	27	40	94	22	39	35	103	1,2	0352116000	Request here
TBS 18	10,0	37	51	120	23	48	48	125	1,6	0352118000	Request here
TBS 20	12,5	37	50	112	24	47	45	125	2	0352120000	Request here
TBS 22	15,0	40	54	120	28	52	48	133	2,6	0350122000	Request here
TBS 26	21,2	50	70	161	30	65	61	168	5	0352126000	Request here
TBS 32	31,5	55	79	186	34	73	71	190	6,8	0352132000	Request here
TBS 36	40,0	70	97	227	46	84	85	235	15,6	0352136000	Request here
TBS 40	50,0	70	97	227	46	84	85	235	15,6	0352140000	Request here
TBS 45	63,0	80	106	257	60	89	90	248	22,4	0352145000	Request here
