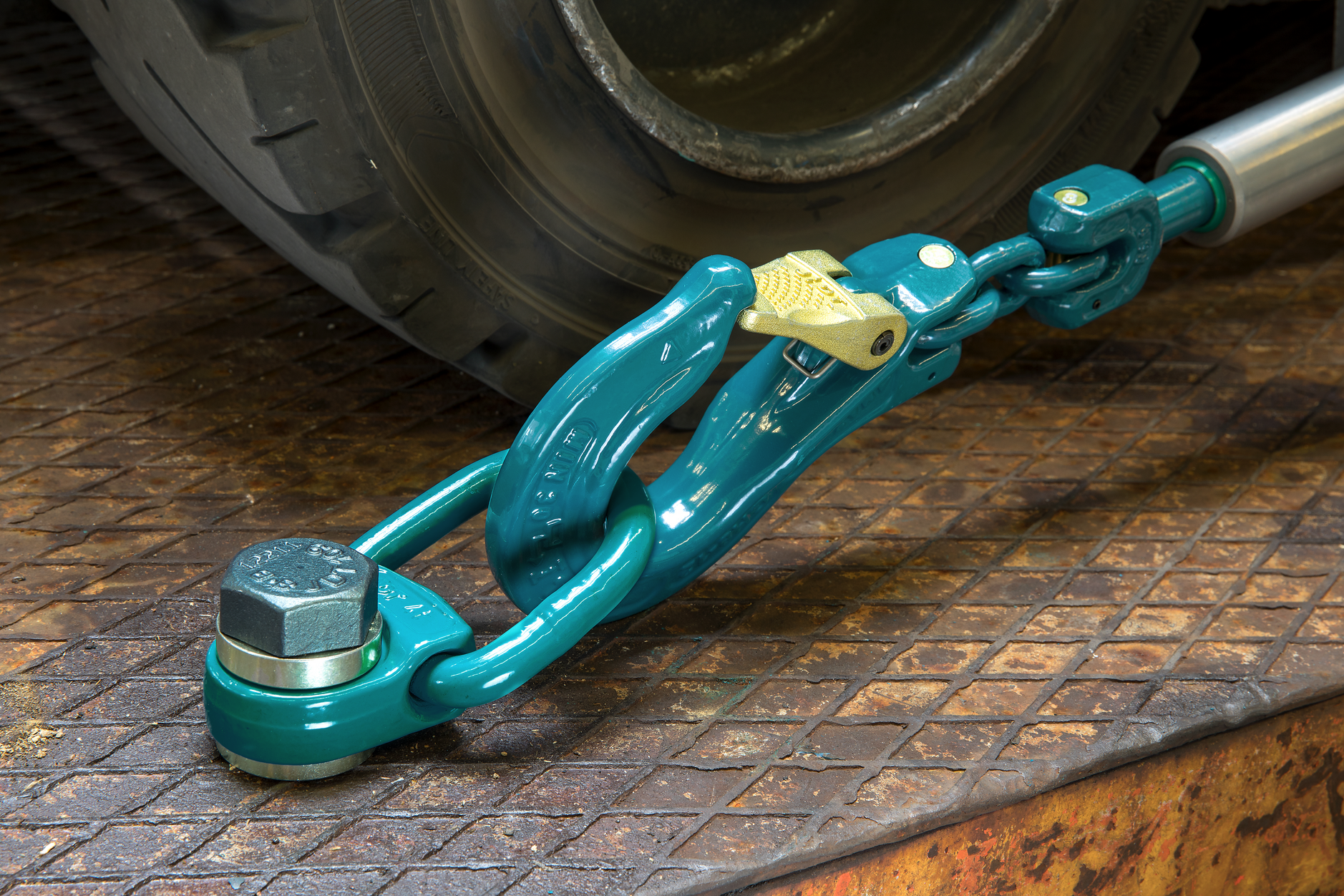

ENORM Lashing point >Flat Point< for lashing

Flat Point (FP) is a roatable attachment point with screw. Screws acc. toDIN EN ISO 4014 (DIN 933/ 10.9), strenght class 10.9, crack-tested.

Additional information

All normal threads available from inch system to round thread. Other threads and lenghts can be supplied (FPSO).
With RFID - chip available.

WLL

measurements and weight

JDT screws acc. to DIN EN ISO 4014 (DIN 931) - strength class 10.9, crack tested.
Code	JDT Screw	Tightening torque	WLL	Lashing force										Weight	Ident no.

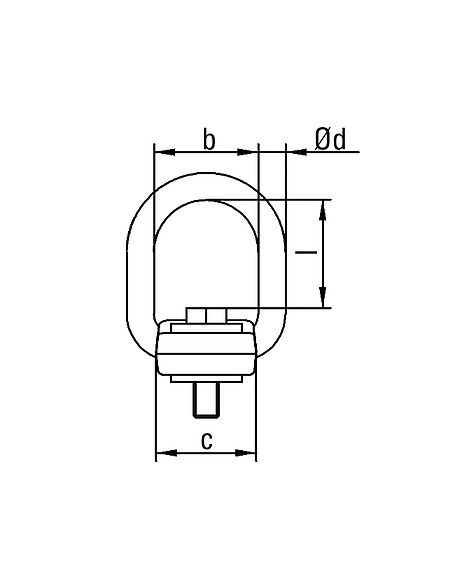

	[mm]	[Nm]	[t]	[daN]	a [mm]	b [mm]	c [mm]	d [mm]	e [mm]	f [mm]	g [mm]	l [mm]	Øs [mm]	[kg]
FP 0,5	M 10 x 40	40	0,5	1.000	69	50	48	13	28	100	12	52	34	0,71	0381100000	Request here
FP 0,8	M 12 x 45	65	0,8	1.600	69	50	48	13	28	100	17	51	34	0,73	0381101000	Request here
FP 1,5	M 16 x 55	160	1,5	3.000	69	50	48	13	28	100	27	49	34	0,77	0381101500	Request here
FP 2,5	M 20 x 70	250	2,5	5.000	69	50	48	13	33	103	37	44	41	0,92	0381102100	Request here
FP 4-S	M 24 x 80	300	4,0	8.000	69	50	48	13	34	103	46	40	41	1,05	0381104200	Request here
FP 4	M 24 x 80	300	4,0	8.000	104	76	72	18	39	147	41	74	58	2,5	0381104000	Request here
FP 5	M 27 x 90	400	5,3	10.000104	76	72	18	39	147	51	72	58	2,63		0381105000	Request here
FP 6	M 30 x 90	500	6,0	12.000	04	76	72	18	39	147	51	70	58	2,74	0381106000	Request here
FP 8	M 36 x 100	600	8,0	16.000	104	76	72	18	43	147	57	62	58	3,15	0381108000	Request here
FP 10	M 42 x 110	1000	160	107	99	34,5	65,5	236	44,5	110	90	10,4			0381110000	Request here
FP 15	M 48 x 120	2000	160	107	99	34,5	65,5	236	54,4	106	90	11,0			0381115000	Request here

Additonal information

The advantages are:
- Double security against a fracture in all load directions
- Very flat design
- Roatable by 360°

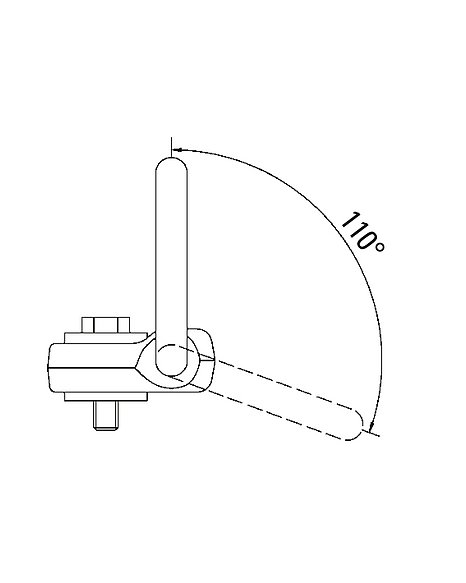

- Permissible working range of the retaining element: 110°
- Self locking link
