ENORM Eye sling hook EOE

ENORM clevis sling hook EOE acc. to EN 1677-2. JDT hooks are designed in such a way that in case of overload they do not break brittle, but hook opening visually increases and lets the load slowly slide down.

Accessories

Same product in another grade

Operation instruction

Download

Assembly video

Additional information

The surface is RAL 5021 water blue, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

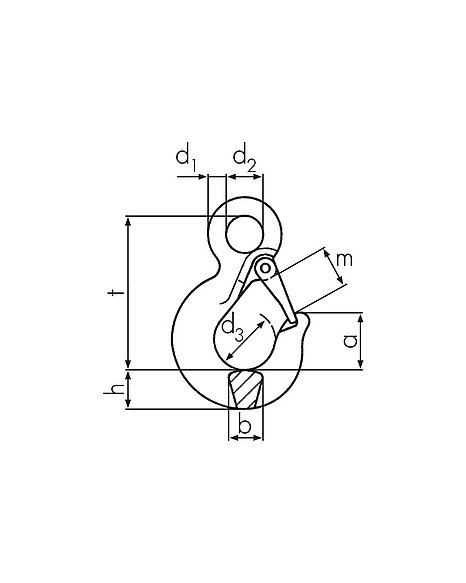

measurements and weight

Code	WLL									Weight	Ident no.
	[t]	a [mm]	b [mm]	d₁ [mm]	d₂ [mm]	d₃ [mm]	h [mm]	m [mm]	t [mm]	[kg]
EOE 6	1,4	32	16	12	27	34	21	22	91	0,5	0363906000	Request here
EOE 8	2,5	44	20	13	29	47	27	30	112	0,7	0363908000	Request here
EOE 10	4,0	53	26	17	34	54	36	36	138	1,5	0363910000	Request here
EOE 13	6,7	66	32	20	40	70	47	47	170	2,6	0363913000	Request here
EOE 16	10,0	61	37	26	54	70	49	50	192	3,9	0363916000	Request here
EOE 18	12,5	71	43	30	45	72	57	54	200	5,9	0363918000	Request here
EOE 22	19,0	94	48	32	50	92	68	68	250	9,5	0363922000	Request here
EOE 26	26,5	93	58	36	60	95	80	68	256	11,4	0363926000	Request here
