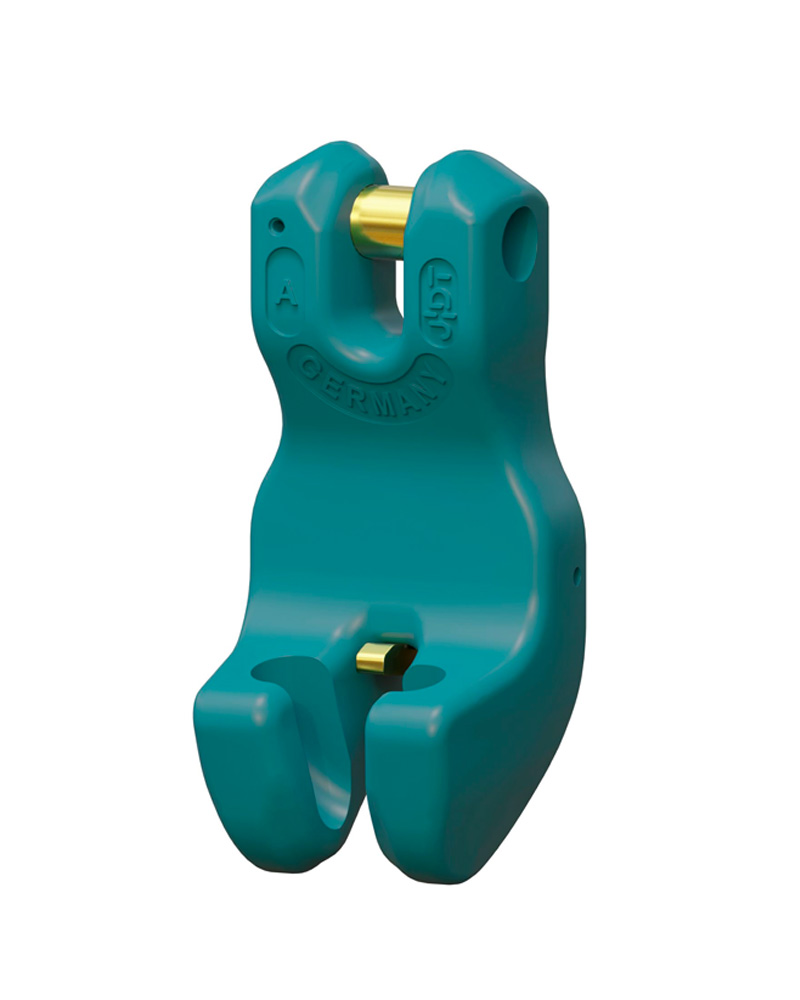

ENORM Shortening clutch EVK



ENORM shortening clutches with clevis head without lock acc. to DIN 5692.

Download



The surface is RAL 5021 water blue, powder coated or painted.
Other custom designs are available upon request.
With RFID - chip available

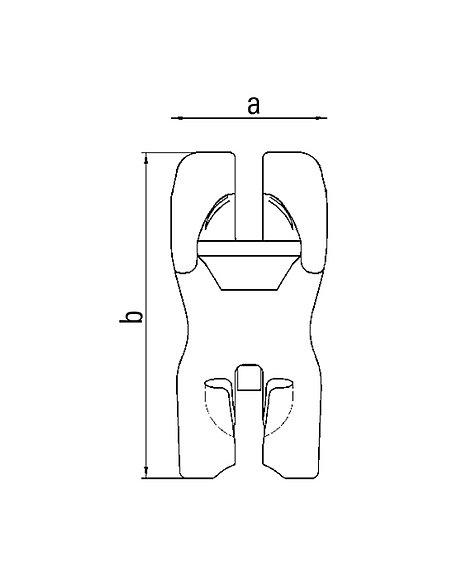

measurements and weight

Code WLL         Weight Ident no. Download 3D

[t] 		a
[mm] 		b
[mm] 		c
[mm] 		t
[mm]
[kg]
EVK 6-10 1,4 44 105 43 81 0,5 0372406000 Request here
EVK 8-10 2,5 56 121 45 91 0,85 0372408000 Request here
EVK 10-10 4,0 62 142 58 106 1,40 0372410001 Request here
EVK 13-10 6,7 78 180 68 137 2,70 0372413000 Request here
EVK 16-10 10,0 104 222 86 170 5,70 0372416000 Request here
EVK 18-10 12,5 110 235 93 183 6,40 0372418000 Request here
EVK 22-10 19,0 130 292 115 225 11,60 0372422000 Request here
