MAXNORM Shortening clutch MVK



ENORM shortening clutches MVK with clevis head acc. to DIN 5692.

Download



The surface is RAL 5020 ocean blue,  powder coated or painted.
With RFID -chip available.

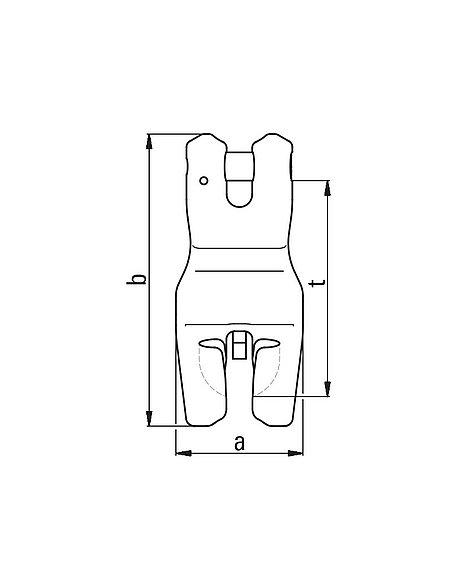

measurements and weight

Code WLL         Weight Ident no. Download 3D

[t] 		a
[mm] 		b
[mm] 		c
[mm] 		t
[mm]
[kg]
MVK 6 1,8 44 105 43 81 0,5 0372906000 Request here
MVK 8 3,0 56 121 45 91 0,9 0372908000 Request here
MVK 10 5,0 62 142 58 106 1,4 0372910000 Request here
MVK 13 8,1 78 180 68 137 2,7 0372913000 Request here
MVK 16 12,5 104 222 86 170 5,8 0372916000 Request here
