ENORM Shortening hook with clevis sling EVHF with latch

ENORM shortening clutches EVHF with clevis head with latch acc. to DIN 5692.

The surface is RAL 5020 ocean blue, powder coated or painted.
Other custom designs are available upon request.
With RFID -chip available.

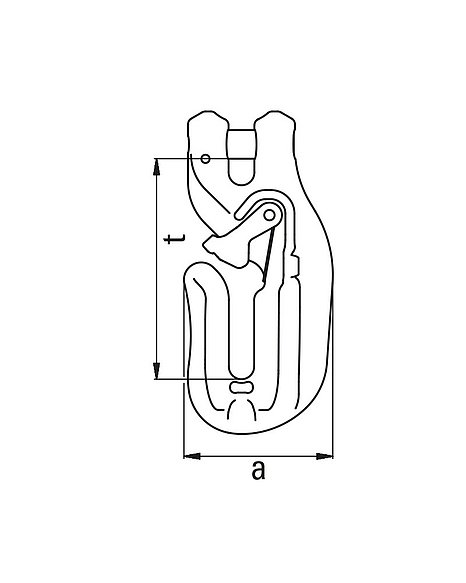

measurements and weight

Code	WLL					Weight	Ident no.
	[t]	a [mm]	b [mm]	c [mm]	t [mm]	[kg]
EVHF 8	2,5	58	28	34	91	0,76	0373208001	Request here
EVHF 10	4,0	77	32	40	98	1,33	0373210001	Request here
EVHF 13	6,7	91	40	48	133	2,87	0373213001	Request here
