MAXNORM Lashing chains with ratchet tensioner MZKV/MZKGH

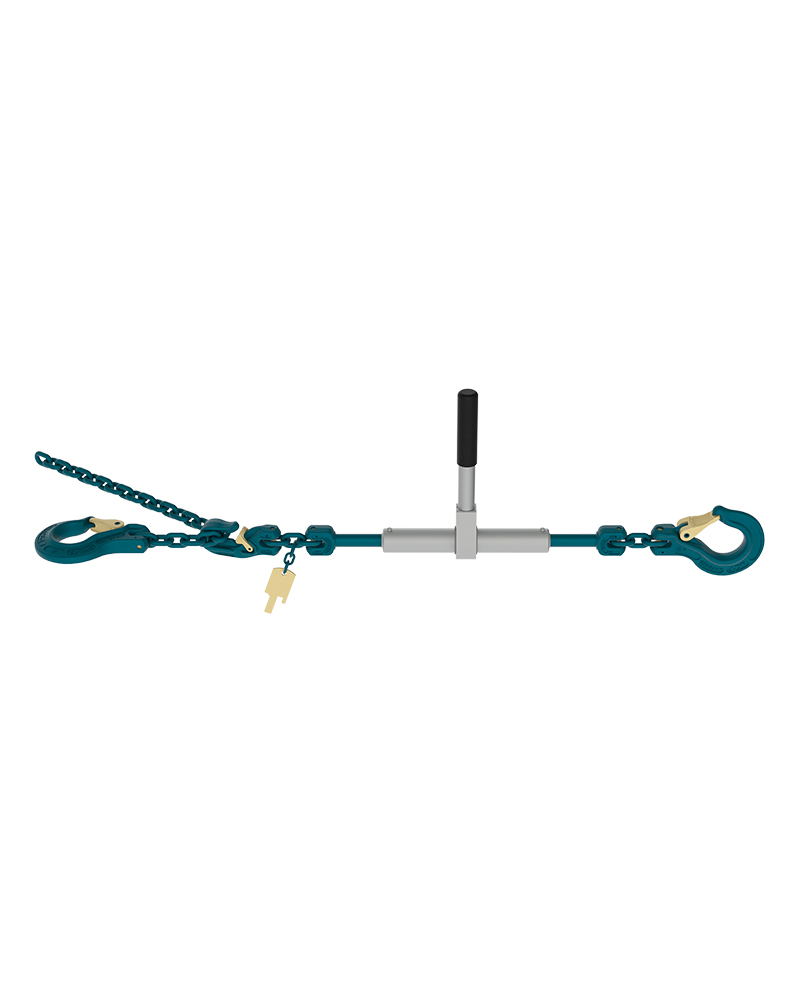

MAXNORM lashing chains with a MAXNORM ratchet tightener
The MAXNORM lashing chain is available in two versions:
MZKV: MAXNORM lashing chain (double sided) with shortening hooks MVHF and a chain sling
MZKGH: MAXNORM lashing chain (single sided) with clevis sling hooks MGH and on the other side, shortening hooks MVHF and a chain sling

Variant 1:

MAXNORM 12 Zurrkette beidseitig mit Verkürzungshaken und Hakenkette.

Code Premissible lashing force (LC) Tensioning force Travel L (closed) L (open)
  daN daN mm mm mm
MZKV 8 6.000 2.800 145 308 453Request now
MZKV 10 10.000 2.800 145 310 455Request now
MZKV 13 16.000 2.800 196 374 570Request now
MZKV 16 25.000 only direct lashing 240 487 727Request now

Variant 2:

MAXNORM 12 Zurrkette einseitig mit Gabelkopfhaken und andererseits Verkürzungshaken und Hakenkette.

Code Premissible lashing force (LC) Tensioning force Travel L (closed) L (open)
  daN daN mm mm mm
MZKGH 8 6.000 2.800 145 308 453Request now
MZKGH 10 10.000 2.800 145 310 455Request now
MZKGH 13 16.000 2.800 196 374 570Request now
MZKGH 16 25.000 only direct lashing 240 487 727Request now

Request product now.

Products in this application area must meet the highest demands. Contact us for your individual requirements.
