Attachment point TAPSK - edge fastening
Weld-on block made of material S355J2 acc. to EN 10025.
Weld-on block > TAPS 20 made of material 25 CrMo4,Material no. 1.7218.
Other custom designs are available upon request.
With RFID -chip available.
WLL

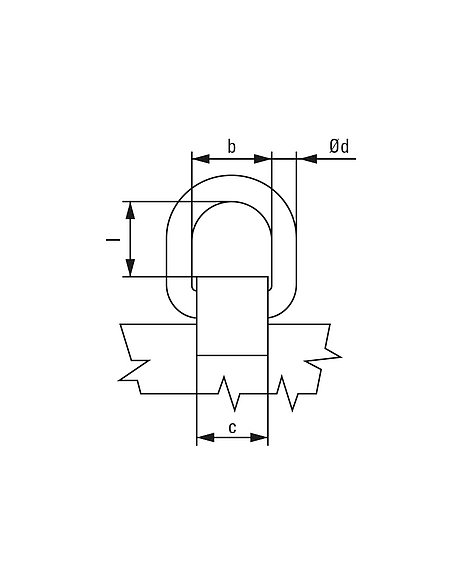

measurements and weight
| Code | Weight | Ident no. | Download 3D | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
a [mm] |
b [mm] |
c [mm] |
d [mm] |
l [mm] | [kg] | |||||
| TAPSK 3 | 12 | 56 | 50 | 18 | 53 | 1,01 | 0380703100 | Request here | ||
| TAPSK 5 | 15 | 67 | 60 | 22 | 63 | 1,84 | 0380705100 | Request here | ||
| TAPSK 8 | 20 | 80 | 70 | 26 | 68 | 3,14 | 0380708100 | Request here |
Additional information
Weld-on attachment point, edge fastening, in working load limits of 3 - 8 t.
The advantages:
- Compact design
- Secured four times
- D-link swings 270°
- Weld-on block made of material S355J2 acc. to EN 10025
| Kind of attachment |   |   |   |  | |||
| Number of pieces | 1 | 1 | 2 | 2 | 2 | 3 o. 4 | 3 o. 4 |
| Inclination angle | 0° | 0° | 0° | 0°-45° | 45°-60° | 0°-45° | 45°-60° |
| WLL | WLL | WLL | WLL | WLL | WLL | WLL | |
| Code | t | t | t | t | t | t | t |
| TAPSK 3 | 3,15 | 3,15 | 6,3 | 4,45 | 3,15 | 6,7 | 4,75 |
| TAPSK 5 | 5,3 | 5,3 | 10,6 | 7,5 | 5,3 | 11,2 | 8 |
| TAPSK 8 | 8 | 8 | 16,0 | 11,2 | 8 | 17 | 11,8 |
In the case of an unsymmetrical load distribution, the working load limit applicable to the 2- and 3/4 leg slings are the same as for 1 leg sling.
